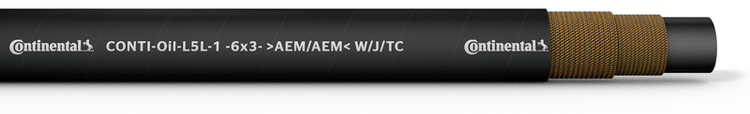

CONTI L5L-1

Oil Hoses

High temperature oil hose

style
section-container,prose

APPLICATIONS

Oil coolers, lubricants and compressed air systems

INNER LINING

smooth

FURTHER PROPERTIES

Free from DOTG , Perfect compression set for a fantastic fit, Resistant to all conventional lubricating oils (including Automatic-Transmission-Fluids and alloyed oils)

TEMPERATURE RANGE

from -40 °C / -40 °F up to +150 °C / +302 °F

style
section-container,prose,section-py
Nominal width (zoll/inch)
Inner Ø (mm)
Wall thickness (mm)
Length (m)
Helix
Working pressure (bar/psi)
Min. burst pressure (bar/psi)
Min. bending radius (mm)
Weight (g/m)
1/4
6
3
500
60/870
300/4351
40
105
5/16
8
3
500
40/580
250/3626
50
130
1/3
9
3
500
25/363
175/2538
55
125
1/3
9.5
3
500
25/363
175/2538
60
145
3/8
10
3
500
25/363
175/2538
65
145
1/2
12
3.5
500
25/363
150/2176
70
210
5/8
15
4
500
20/290
150/2176
100
280
5/8
16
4
500
20/290
150/2176
110
320
1/4
6
3
80
40/580
300/4351
40
103
5/16
8
3
80
30/435
200/2901
50
126
1/3
9
3
60
25/363
175/2538
55
137
3/8
10
3
60
25/363
175/2538
65
148
1/2
12
3.5
40
25/363
150/2176
70
208
5/8
15
4
500
20/290
150/2176
100
280
5/8
16
4
40
20/290
150/2176
110
285
1/3
9.5
3
60
25/363
200/2901
60
144
style
section-container,prose-py

Temperature resistance applies only to materials used / All technical data apply at room temperature
