Air spring systems for Industrial Applications

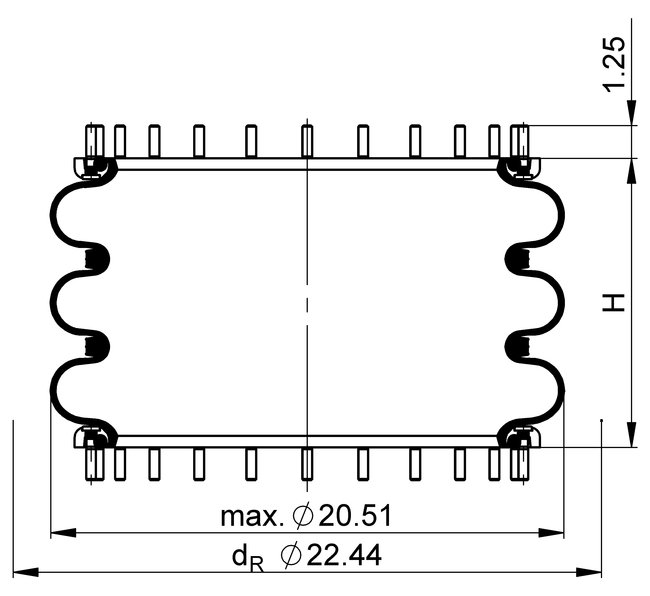

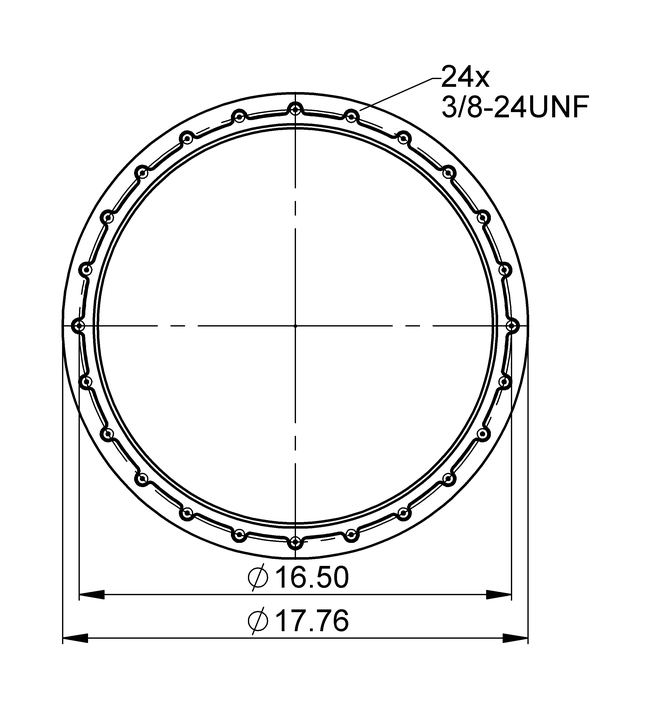

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >15.70 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 94 lbf
    Overall weight 27.6 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 94 lbf

      Overall weight 27.6 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 15.00 in. 7800 10900 14600 18200 21800 3300
    H 13.50 in. 8850 12400 16500 20500 24800 3100
    H 12.00 in. 9520 13600 18100 22400 27200 2800
    H 10.50 in. 9960 14500 19400 24100 28800 2500
    H 9.00 in. 10400 15300 20300 25400 30100 2100
    H 7.50 in. 10800 15800 21100 26500 31400 1700
    H 6.00 in. 11300 16700 22100 27700 33000 1300

  • Purchase order data
    Type Air Inlet Order No.

    rubber bellows only

    		– 61780

    with bead rings, 1 7/8in bolts, nuts and washers

    		– 62397

    CAD Data

    • Type

      Air Inlet –

      Order No. 61780

    • Type

      Air Inlet –

      Order No. 62397

  • Service instructions
    Thread max. Torque
    3/8-24 UNF 30 lbf ft

    • 3/8-24 UNF 30 lbf ft
