Air spring systems for Industrial Applications

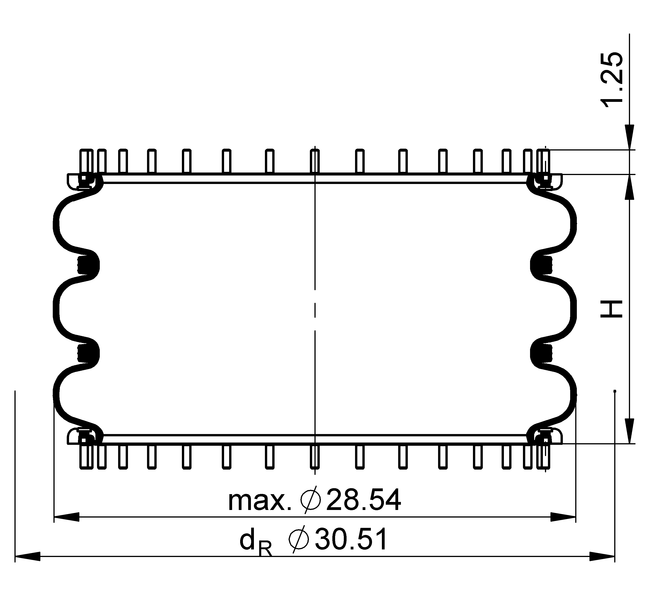

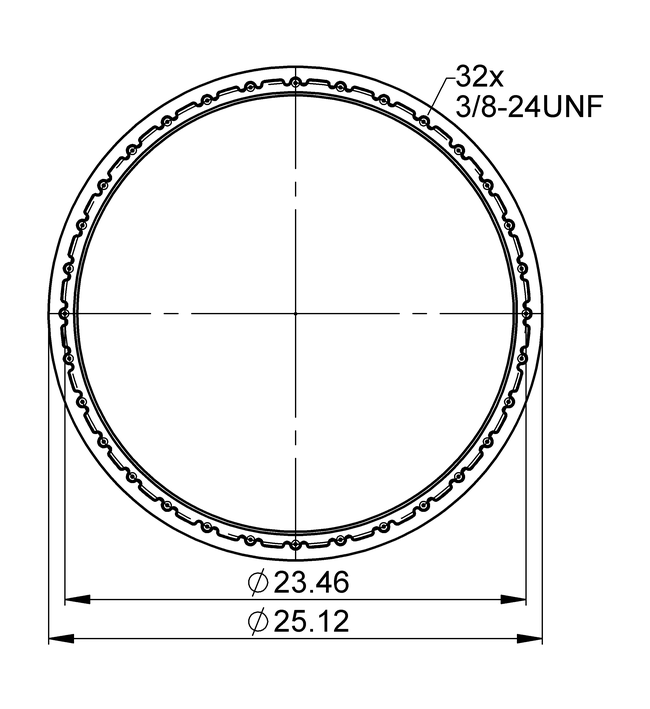

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >18.90 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 214 lbf
    Overall weight 37.5 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 214 lbf

      Overall weight 37.5 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 20.00 in. 10900 16000 21200 NaN NaN 9200
    H 17.50 in. 15300 22700 30200 37600 45200 8300
    H 15.00 in. 17800 26200 34700 43100 51900 7300
    H 12.50 in. 19700 28600 38000 47300 56600 6200
    H 10.00 in. 20700 30400 40100 49700 60000 4900
    H 7.50 in. 21900 32100 42300 52700 62500 3100

  • Purchase order data
    Type Air Inlet Order No.

    rubber bellows only

    		– 61790

    with bead rings, 1 3/4in bolts, nuts and washers

    		– 65755

    CAD Data

    • Type

      Air Inlet –

      Order No. 61790

    • Type

      Air Inlet –

      Order No. 65755

  • Service instructions
    Thread max. Torque
    3/8-24 UNF 30 lbf ft

    • 3/8-24 UNF 30 lbf ft
