Air spring systems for Industrial Applications

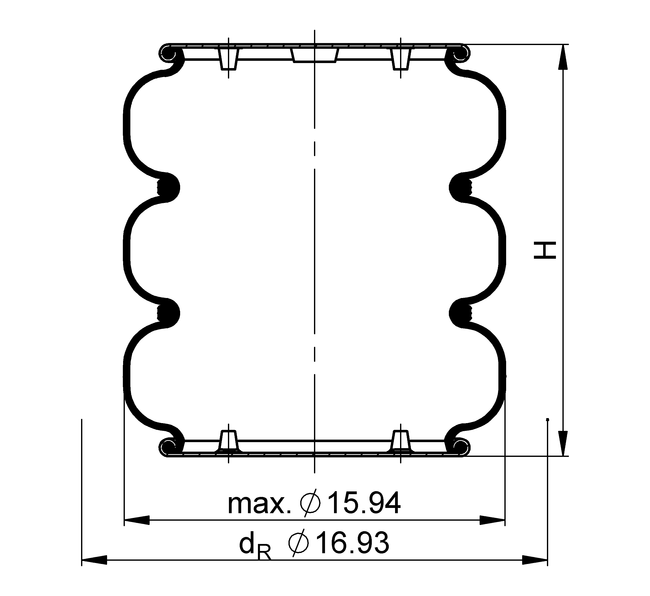

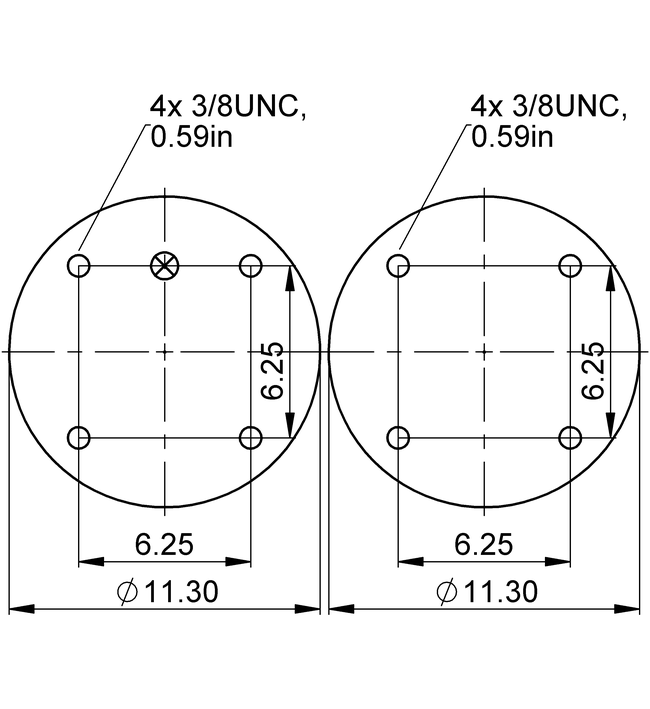

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >17.70 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 112 lbf
    Overall weight 20.9 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 112 lbf

      Overall weight 20.9 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 15.00 in. 3650 5530 7460 9460 11400 1900
    H 12.50 in. 4260 6410 8650 10900 13100 1600
    H 10.00 in. 4760 7180 9600 12000 14400 1300
    H 7.50 in. 5250 7820 10400 13000 15600 1000
    H 5.00 in. 5730 8660 11600 14500 17300 670

  • Purchase order data
    Type Air Inlet Order No.

    with crimped plates

    		– 64584

    CAD Data

    with crimped plates

    		– 66294

    CAD Data

    • Type

      Air Inlet –

      Order No. 64584

    • Type

      Air Inlet –

      Order No. 66294

  • Service instructions
    Thread max. Torque
    3/8-16 UNC 20 lbf ft

    • 3/8-16 UNC 20 lbf ft
