Air spring systems for Industrial Applications

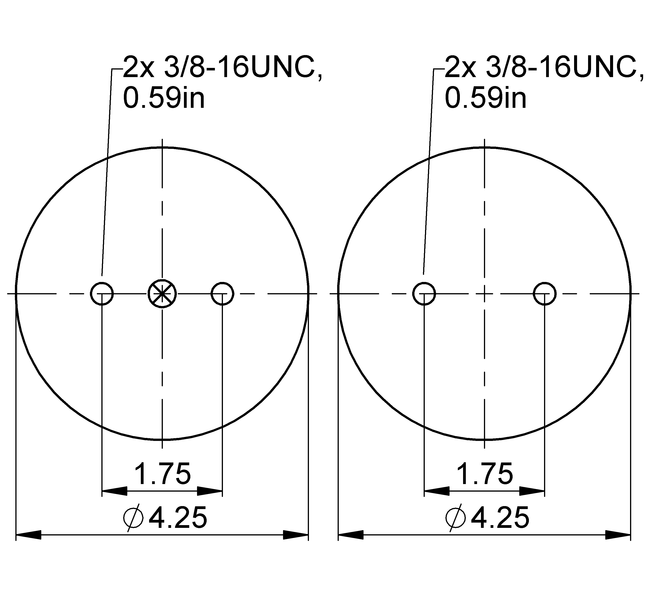

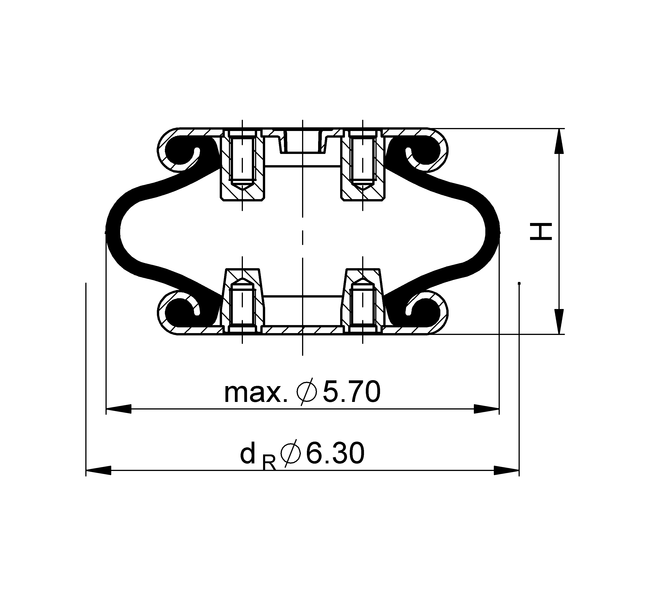

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >3.54 in. only after consultation with ContiTech

    Arrow

    Recommended height for vibration isolation: 3.15 in.

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 34 lbf
    Overall weight 2.6 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 34 lbf

      Overall weight 2.6 lb

  • Vibration isolation - dynamic characteristic values
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    Force (load) F [lbf] 485 731 977 1,220 1,470 35
    Spring rate c [lbf/in] 657 917 1,170 1,430 1,680 35
    Natural Frequency f0 [Hz] 3.7 3.5 3.4 3.4 3.4 35
    Design height H: recommended 3.15 inch, minimum 2.76 inch

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 3.25 in. 383 584 790 1010 1230 36
    H 3.00 in. 466 703 946 1200 1450 33
    H 2.75 in. 533 803 1070 1360 1640 30
    H 2.50 in. 591 883 1180 1480 1800 26

  • Purchase order data
    Type Air Inlet Order No.

    with crimped plates

    		1/4 NPT
    A = 0 in. excentrical     		77068

    with crimped plates

    		3/4 NPT
    A = 0 in. excentrical     		77087

    CAD Data

    rubber bellows only

    		– on request

    • Type

      Air Inlet 1/4 NPT_20lbft; 0in. excentrical

      Order No. 77068

    • Type

      Air Inlet 3/4 NPT_40lbft; 0in. excentrical

      Order No. 77087

    • Type

      Air Inlet –

      Order No. on request

  • Service instructions
    Thread max. Torque
    3/8-16 UNC 20 lbf ft
    1/4 NPT 20 lbf ft
    3/4 NPT 40 lbf ft

    • 3/8-16 UNC 20 lbf ft

    • 1/4 NPT 20 lbf ft

    • 3/4 NPT 40 lbf ft
