AGRIDUR® variable-speed belts

For variomatic and variator drives with low-stretch tension member and upgraded compound

AGRIDUR® power transmission belts ensure extremely reliable power transmission for agricultural machines thanks to their smooth running properties, even under harsh operating conditions, such as those resulting from dirt, dust and moisture. Furthermore, AGRIDUR® power transmission belts deliver high efficiency, even under the most extreme of weather conditions, such as heat and cold, drought and rain, and direct sunlight. Another factor to bear in mind is that no lubrication is required – a real advantage when compared with chain drives. AGRIDUR® power transmission belts therefore help to significantly reduce maintenance costs.

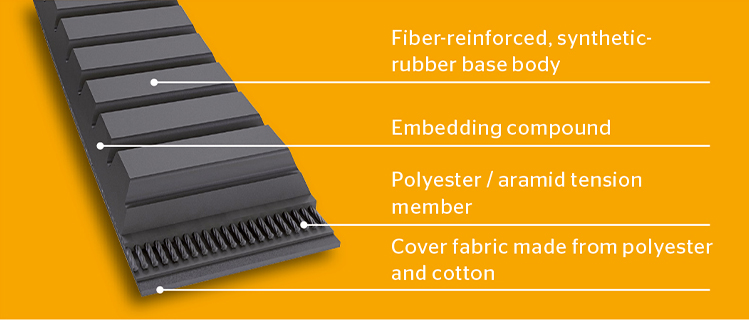

Belt structure

Belt structure


  • 1. Body manufactured from fiber-reinforced synthetic rubber
  • 2. Embedding compound
  • 3. Tension member manufactured from reinforced polyester/aramid
  • 4. Cotton cover fabric

AGRIDUR® variable-speed belts are temperature-resistant between –30°C and +90°C. They are especially suitable for use under high loads. They transmit high outputs safely and reliably.

Profiles
HI HM
HJ HN
HK HO
HL HQ
Length range 600 – 5,000 mm
Width range 20 – 99 mm
