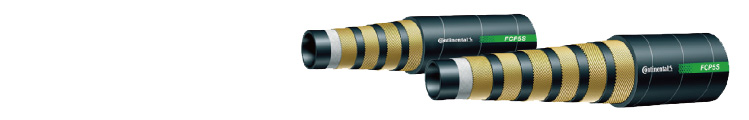

FCP5S


Marking: FCP5S-06 5100 PSI Meets or Exceeds SAE 100R13 3/8" (DN 10 mm) 35.0 MPa 350 BAR Flame Resistant MSHA 2G-IC-14C/46


Applications

High temperature and high pressure applications subject to surge or flexing such as construction equipment, mining and the high performance industrial market.


Specifications

  • Inner tube: Synthetic rubber
  • Reinforcement: Four alternating layers of spiralled high tensile steel wire (sizes 3/8" to 1.1/4") and six alternating layers of spiralled high tensile steel wire (size 1 1/2" and 2")
  • Cover: Synthetic rubber
  • Temperature range: -58°F to +250°F (-50°C to +121°C)
  • Applicable Standards: SAE 100R13, EN856 R13, GB/T 10544 R13, certificate of US MSHA
  • Safe factor: 4:1


Technical Data

Product Number Hose ID W.D. C.O.D Max W.P. Min B.R. Weight
  mm in Min. mm Max. mm Min. mm Max. mm Max. mm Mpa psi mm kg/m
FCP5S-06-10 10 3/8 9.3 10.1 16.9 18.1 22.2 35 5100 90 0.72
FCP5S-08-13 12.5 1/2 12.3 13.5 19.4 21 25.4 35 5100 90 0.83
FCP5S-10-16 16 5/8 15.5 16.7 23 24.6 29 35 5100 120 1.03
FCP5S-12-19 19 3/4 18.6 19.8 27.4 29 33 35 5100 120 1.42
FCP5S-16-25 25 1 25 26.4 34.9 36.4. 39.8 35 5100 150 2.04
FCP5S-20-32 31.5 1 1/4 31.4 33 40.9 42.9 47.1 35 5100 270 2.61
FCP5S-24-32 38 1 1/2 37.7 39.3 53.1 56.3 59.6 35 5100 320 5.05
FCP5S-32-51 51 2 50.4 52 66.9 69.3 72.7 35 5100 500 7.02
