CONTI® Paint spray hose PA

The reliable specialist

CONTI® Paint spray hose PA

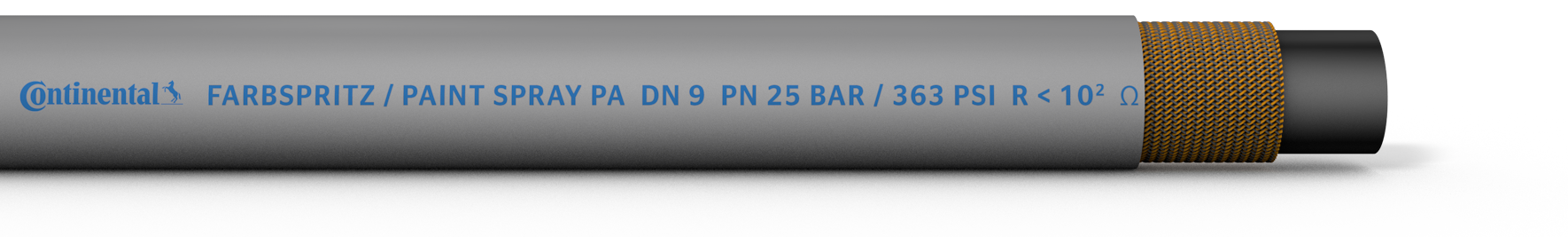

Label: on a grey background "Continental FARBSPRITZ / PAINT SPRAY PA DN 9 PN 25 BAR / 363 PSI R < 10<sup>2</sup>Ω Typ M Made in Germany"

STANDARD / APPROVAL

  • Certificate
    2153

FLOW MEDIUM

Glues, Lacquers, Oils, Paints, Polar and aromatic solvents

INNER LINING

PA, black, highly abrasion resisitant, non-porous, smooth

REINFORCEMENTS

Synthetic fibres

COVER

NBR, grey, resistant to ozone, weather and UV

FURTHER PROPERTIES

Length independently electrically conductive, R < 102

WORKING PRESSURE UP TO

25 bar / 363 psi

TEMPERATURE RANGE

from -25 °C / -13 °F up to +80 °C / +176 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
1/4 6 2.5 > 10 25/363 100/1,450 60 86
1/3 8 3.0 > 10 25/363 100/1,450 80 140
3/8 9 3.5 > 10 25/363 100/1,450 90 184
7/16 11 4.0 > 10 25/363 100/1,450 110 243
1/2 13 4.0 > 10 25/363 100/1,450 130 240
Pressure data relate to room temperature / High pressures and/or temperatures reduce the service life
