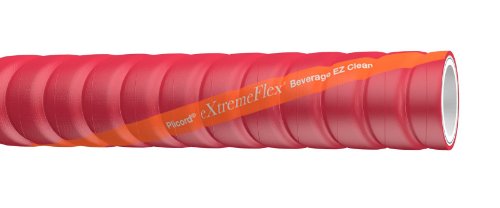

ExtremeFlex™ Beverage (EZ Clean Cover)

Marking: ContiTech Extremeflex Beverage EZ Clean



Applications

Plicord ExtremeFlex Beverage Red with EZ Clean Cover is primarily for liquid transfer. For beer, wine, distillery and beverage (edible liquid) transfer processing facilities. Ideal for applications requiring flexible and/or tight bend connections. Non-phthalates compound

Specifications

  • Construction Tube: White Chlorobutyl (FDA/USDA compliant & conforms to 3-A Sanitary Standard 18-03)
  • Cover: Corrugated red EZ Clean UHMWPE cover (semi-smooth finish).
  • Reinforcement: Spiral-plied fabrics with double galvanized helix
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications. !!! New !!! Sanitary type fitting crimp specifications available. Refer to ContiTech Beverage Hose Crimp Manual.
  • Temperature Range: -30°F to 220°F (-34°C to 104°C)
  • Order Codes: 594-605
  • Packaging: 100’ length coiled polywrapped



Technical Data Imperial

  • Part Number

    InnerØ

    OuterØ

    Weight

    Working
    Pressure

    Bend Radius

    Vacuum HG

  •

    (in)

    (in)

    (lbs/ft)

    (PSI)

    (in.)

    (in.)

  • 20776605

    1

    1.52

    0.65

    250

    2

    29

  • 20762754

    1-1/2

    2.03

    0.93

    250

    3

    29

  • 20752524

    2

    2.54

    1.21

    250

    4

    29

  • 20762758

    3

    3.60

    2.03

    200

    6

    29

  • 20762760

    4

    4.61

    2.77

    150

    8

    29



Technical Data Metric

  • Part Number

    InnerØ

    OuterØ

    Weight

    Working
    Pressure

    Bend Radius

    Vacuum HG

  •

    (mm)

    (mm)

    (kg/m)

    (MPa)

    (mm)

    (mm)

  • 20776605

    25.40

    38.70

    0.69

    1.72

    51

    737

  • 20762754

    38.10

    51.60

    1.38

    1.72

    76

    737

  • 20752524

    50.80

    64.50

    1.80

    1.72

    102

    737

  • 20762758

    76.20

    91.50

    3.02

    1.38

    152

    737

  • 20762760

    101.60

    117.00

    4.12

    1.03

    203

    737
