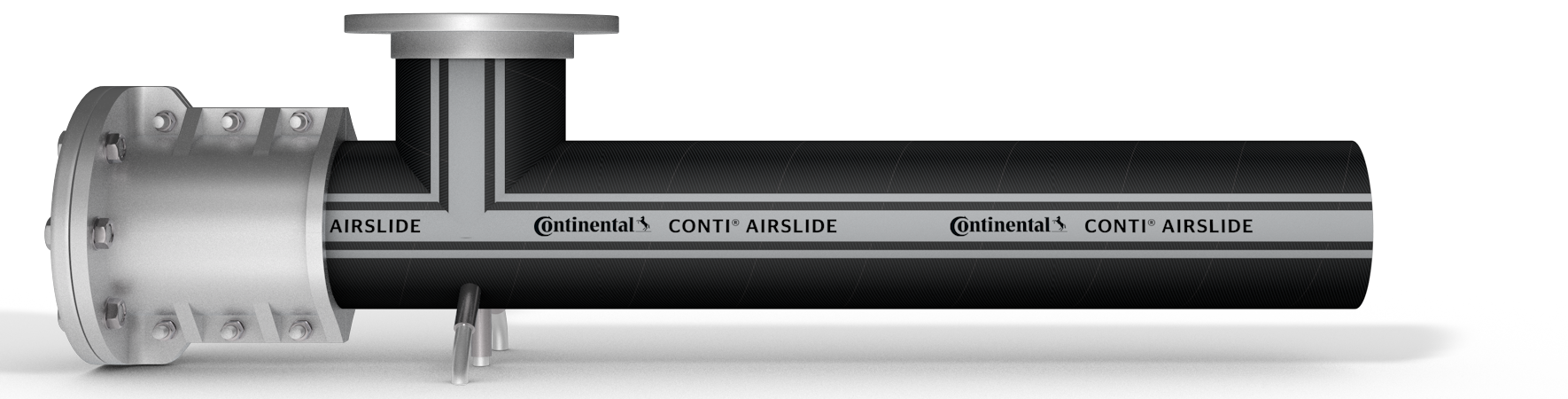

CONTI^® AIRSLIDE

Transport of fluidisable bulk materials

APPLICATIONS

Cement plants, Conveying of powdered material (grain size ≤3mm), Plastics production

FLOW MEDIUM

Aluminium Oxide, Cement, Fly ash, Microsilica, PVC, Quarz powder, Starch, Washing powder

INNER LINING

NR, black, highly abrasion resisitant, Partial lining with special fleece and fluidisation channels underneath (max. 2 bar)

REINFORCEMENTS

Synthetic fibres, With integrated steel wire helix

COVER

IR-BR, black, fabric patterned, abrasion resistant, resistant to ozone, weather and UV

FURTHER PROPERTIES

Air supply for fluidising channels 0.2 to 0.5 bar, Both conductive and non-conductive version available, conductivity is provided by rubber components (no copper stranding and corresponding connection necessary), Conti Ultimate PN 10 Aluminium Flange System, Fluidisation channels for connection of G¼ for DN 10 pneumatic hoses, Gentle material treatment, Low noise, Low-energy, Maintenance-free, Simple, cost-effective and flexible installation, The conveying angle must be from -3° to -10° over the entire length, The pumped medium must be dry (<0.2% moisture), Top feed in stainless steel quality (alt. in steel)

WORKING PRESSURE UP TO

2 bar / 29 psi

TEMPERATURE RANGE

from -20 °C / -4 °F up to +80 °C / +176 °F

nominal width	inner-Ø	wall thickness	length	helix	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m		bar/psi	bar/psi	aprx. mm	aprx. g/m
3	75	12.5	>1	•	2/29	10/145	525	4,500
4	100	12.5	>1	•	2/29	10/145	700	5,500
6	150	14.5	>1	•	2/29	10/145	950	9,500
8	200	19.5	>1	•	2/29	10/145	1250	17,500

_{Pressure based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request}
