Label:

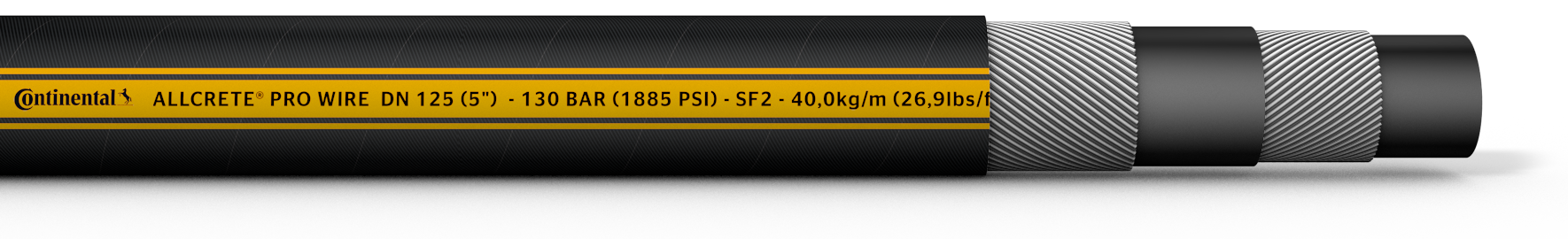

3 orange axially applied stripes on black cover "Continental ALLCRETE® PRO WIRE DN 125 (5") - 130 BAR (1885 PSI) - SF2 - 40,0kg/m (26,9lbs/ft) "
APPLICATIONS
Concrete and soild pumps
FLOW MEDIUM
Concrete
INNER LINING
Special elastomer, black, highly abrasion resistant (acc. to DIN ISO 4649-A: <90mm³), homogenous, smooth
REINFORCEMENTS
high tension steel wire
COVER
Spezial elastomer, black, fabric patterned, abrasion resistant, resistant to ozone, weather and UV
FURTHER PROPERTIES
Available flange systems: Victaulic, Heavy Duty (US), etc., Couplings are partly hardend and with galvanized sleeve, Fixed lengths with built-in couplings acc. to customers request
WORKING PRESSURE UP TO
130 bar / 1,885 psi
TEMPERATURE RANGE
from -40 °C / -40 °F up to +65 °C / +149 °F
|
nominal width |
inner-Ø |
wall thickness |
length |
working pressure |
min. burst pressure |
min. bending radius |
weight |
| zoll/inch |
mm |
mm |
m |
bar/psi |
bar/psi |
aprx.
mm |
aprx.
g/m |
|
5
|
125
|
15.0
|
40
|
130/1,885
|
260/3,771
|
1250
|
11,500
|
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability
