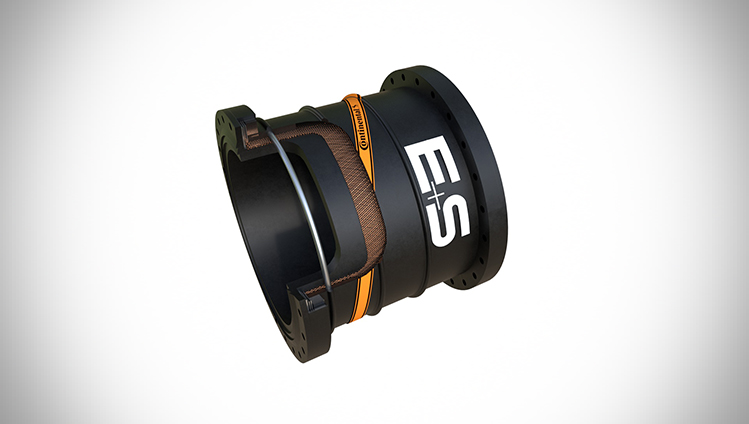

Suction & Discharge Compensators

Suction & Discharge Compensators

Very short suction or discharge hoses can be used as wear resistant compensators in abrasive applications. These hoses are ideal as pump in- or outlets to absorb vibrations.








Features & Benefits

  • Compensators are optimal for the installation before / after and between pumps
  • These short hoses take care for the absorption of vibrations and increase the lifetime of the pump
  • Continental rubber compensators neutralize pipe misalignments and length deviations


Specifications

  • Smooth, extruded lining, highly resistant to abrasion
  • Additional oil and heat resistant rubber compounds available
  • Abrasion layer thickness from 5 to 50 mm
  • Maximum available length up to 500 mm
  • Working pressure up to 25 bar
  • Temperature range from -20°C up to +90°C
  • Hose ID range from 80 to 1600 mm
  • Production tolerance: DIN EN ISO 28017 (Dredge Hoses)
