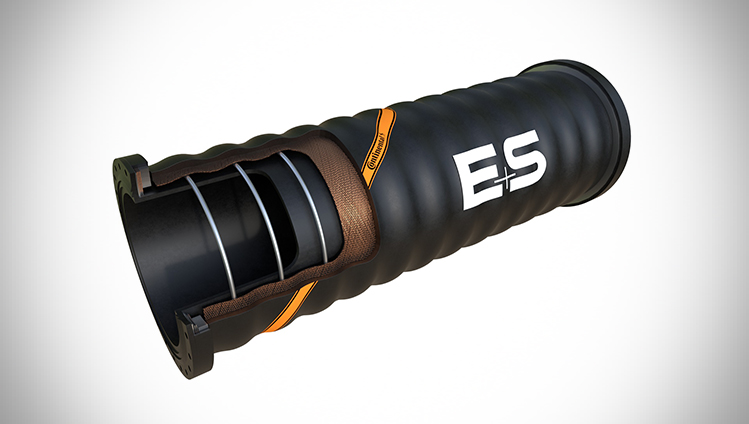

Suction Hose – Corrugated Type with Steel Rings

Suction Hose – Corrugated Type with Steel RingsSuction hoses - designed for rugged applications - offer a tight bending radius under severe working conditions without buckling or kinking. They can be found as gimbal or ladder joints of a dredger's suction line. Corrugated type is optimal for an application with a quite high portion of vacuum.




Features & Benefits

  • Suitable for suction applications (vacuum) and low pressures
  • Available in short production length
  • Ideal as suction joint or pump inlet
  • Perfect form stability by any application


Specifications

  • Smooth, extruded lining, highly resistant to abrasion
  • Additional oil and heat resistant rubber compounds available
  • Abrasion layer thickness from 5 to 50 mm
  • Maximum available length up to 40 m
  • Working pressure up to 25 bar
  • Temperature range from -20°C up to +90°C
  • Hose ID range from 80 to 1600 mm
  • Production tolerance: DIN EN ISO 28017 (Dredge Hoses)
