EURO TRIX®

The versatile water hose

EURO TRIX®

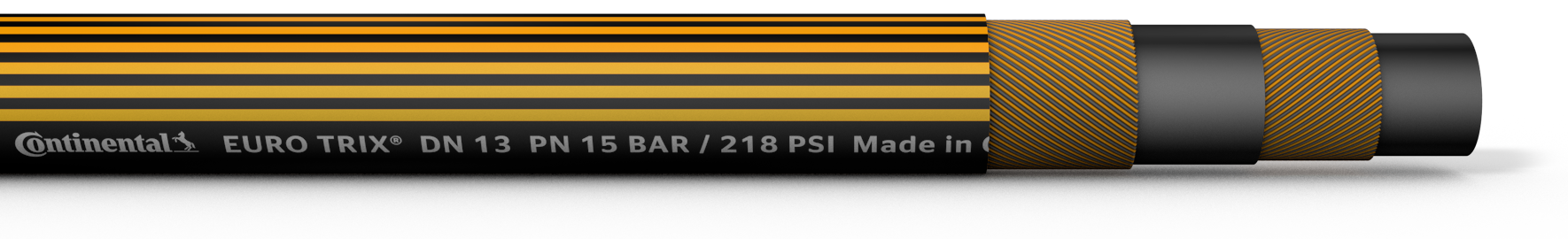

Label: 6 orange stripes, axially applied, on black cover " Continental EURO TRIX® DN 13 PN 15 BAR / 218 PSI Made in Germany"

APPLICATIONS

Agricultural sector, Construction industry, Fleets, General industry, Industry, Landscaping and gardening, Mining industry, Municipal enterprises, Over- and underground workings, Workshops

FLOW MEDIUM

Cooling water, Water

INNER LINING

EPDM, black, non-porous, smooth

REINFORCEMENTS

Synthetic fibres

COVER

EPDM, black, smooth

WORKING PRESSURE UP TO

15 bar / 218 psi

TEMPERATURE RANGE

from -20 °C / -4 °F up to +100 °C / +212 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
1/2 13 3.5 40 15/218 45/653 50 265
5/8 16 3.8 40 15/218 45/653 65 360
3/4 19 4.0 40 15/218 45/653 70 435
1 25 4.5 40 15/218 45/653 120 580
Temperature resistance applies only to materials used / All technical data apply at room temperature
