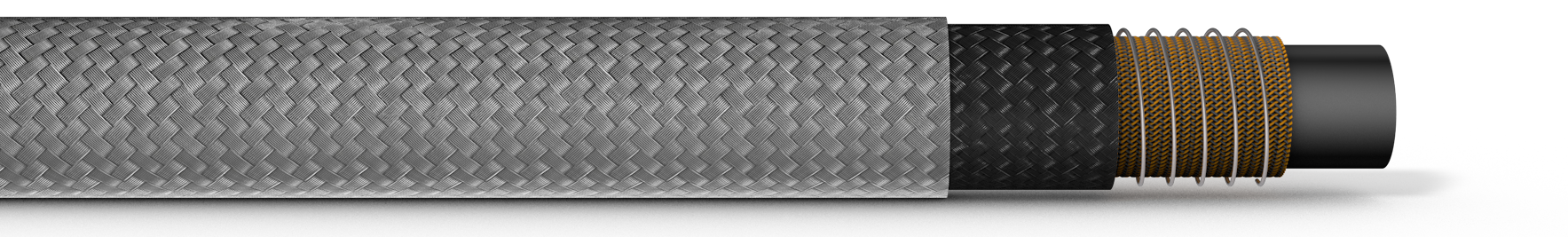

CONTI® FUEL GCW 2226

Fuel hose

CONTI® FUEL GCW 2226
Label: Dimension- >NBR/CO/ST< W/J/TC

FLOW MEDIUM

Biodiesel resistant, Diesel fuel

INNER LINING

NBR, black

REINFORCEMENTS

CO, With integrated steel wire helix

FURTHER PROPERTIES

Hose 22 25 with outside steel braiding with blue colored marking

WORKING PRESSURE UP TO

45 bar / 653 psi

TEMPERATURE RANGE

from -30 °C / -22 °F up to +70 °C / +158 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
5/8 16 5.0 45/653 90/1,305 90 520
7/8 20 5.5 38/551 75/1,088 105 630
1 25 6.0 38/551 75/1,088 120 730
1 1/4 32 6.0 35/508 70/1,015 175 990
1 5/8 40 6.5 30/435 60/870 280 1,125
2 50 6.5 30/435 60/870 335 1,400
2 3/8 60 6.8 25/363 50/725 400 1,730
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
