CONTI®V MULTIRIB

Poly-V-belts for high gear ratios, high belt speeds, small pulley diameters and back-tension rollers; compliant with DIN 7867.
  • Temperature resistant between -30°C and +80°C
  • Enhanced running smoothness
  • Suitable for reverse flexing/reverse tensioning idlers
  • Antistatic in accordance with ISO 1813
  • Moderately oil resistant
  • Suitable for use in tropical climates
  • Dust-proof



Technical specifications

Technical specifications

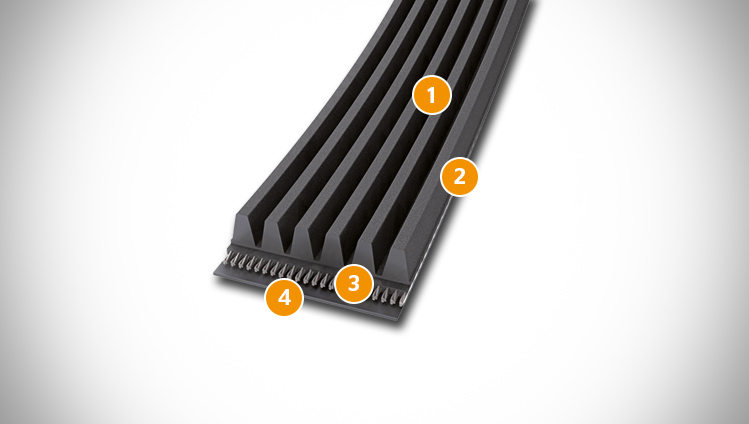

  • 1. Synthetic rubber ribs
  • 2. Embedding compound
  • 3. Polyester tension member
  • 4. Polyamide cover fabric



Dimensions

Profile Length range Lb (mm) / Lb (1/10 inch)
PJ 356 - 2489 / 140 - 980
PK 635 - 2550 / 250 - 1004
PL 991 - 7055 / 390 - 2777
PM 2134 - 16764 / 840 - 6600


PH profile available on request.
