CONTI MultiProtect
High-performance rip detection system with cord and splice monitoring functionality for conveyor belts

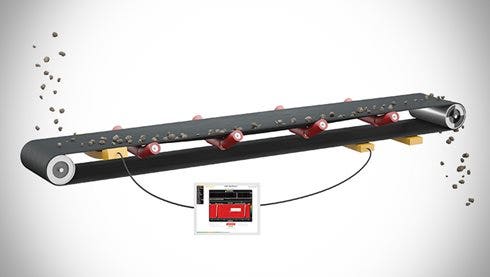

CONTI MultiProtect is a permanent magnetic system that detects belt rips by monitoring embedded rip inserts that are magnetized. When using the MultiProtect flat sensor, systems can monitor for steel cord damage and splice integrity in addition to rip monitoring. Special pipe belt application allows for the rip insert functionality to also be used for orientation / rotation.
primary
id-1-for-anchors
Cord Damage Detection (Flat MultiProtect Sensor only)
- User-defined alarm levels
- Interactive display
- Damage reporting
open
id-2-for-anchors

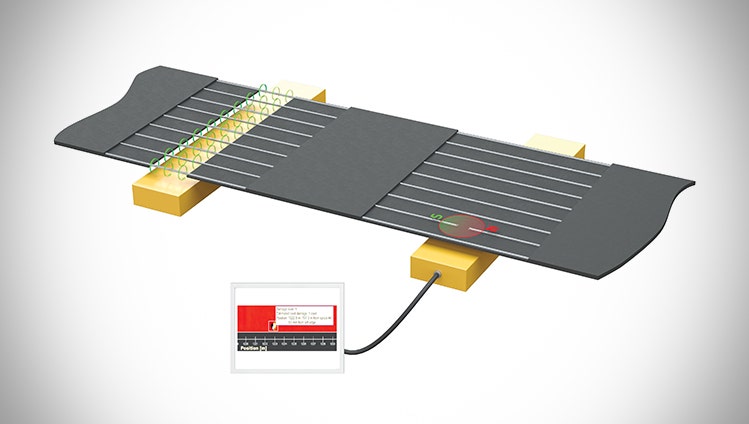

Splice Monitoring
- Splice condition monitoring
- Magnetic image of splice
- Chronological images of splice
id-3-for-anchors
Longitudinal Rip Detection
- Pliable embedded insert design
- Establishes rip insert map
- Monitors rip insert images
id-4-for-anchors
Pipe Belt Position Monitoring
- Images of rip inserts
- Rip insert position detected
- Pipe belt orientation monitored
Technology
- Permanent magnet magnetizes steel cords in conveyor belt
- Discontinuity in cord results in magnetic anomalies
- At cord ends or breaks, the magnetic flux lines exit the steel cords
- Sensor maps magnetic characteristics of conveyor belt
Technical Key Data
Belt Speed
up to 10 m/s
Belt Width
600 mm to 3500 mm (standard), wider is possible with custom design
Temperature
-40 °C to 70 °C
Humidity
20% to 90% RH (non-condensing)
System Output
Relays; Ethernet TCP/IP; Modbus TCP (PROFIBUS option available)
Input Voltage
110/220 VAC; 24 VDC option available
IP Class
65
