Natural Gas Hoses

Standard API Spec. 17K

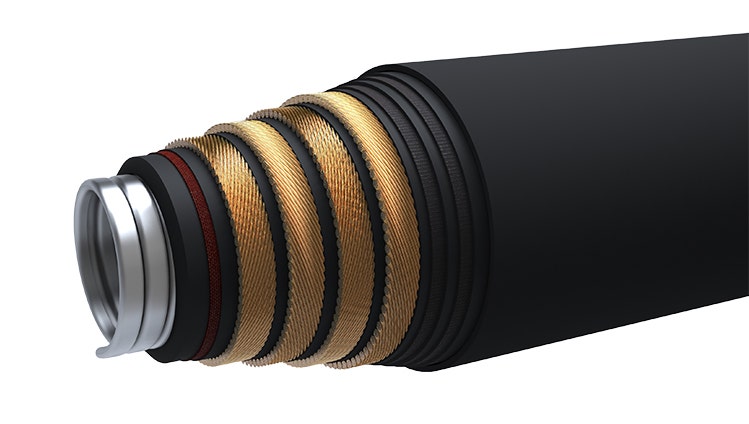

Continental’s bonded flexible hoses deliver natural gas from Floating Storage and Regasification Units (FSRUs) to jetties, fixed platforms, or subsea manifolds—forming a critical link in the LNG value chain. Our Natural Gas Hose and flexible transfer solutions enable cleaner energy today, driving the transition toward a carbon-neutral future.

Features & Benefits
  • Hoses to be fire rated to 1300oF (704oC) for 30 minutes complying with both Lloyd's register OD 1000/499 and API 16C requirements.
  • Additional external protection available upon request
  • The hoses are equipped with built-in bend stiffener at the neck area to protect against overbending
  • Diffused gases are vented with a patented gas venting technology
  • Coupling materials meet NACE MR 0175/ISO 15156 latest edition
  • Material of the end fittings is either carbon steel or duplex
  • Material of the internal carcass is either 316L or 254SMO
  • Finite element analysis capability to check survival and fatigue conditions
Contact
primary
style
section-container, section-pb

Specifications

Description
Content
Internal diameter
2” to 14”
Bore type
full flow, rough bore
Liner type
H2S resistant HNBR
Design pressure
up to 7,500 psi
Operating temperature
-30° C to +90° C (-22° F to 194° F)
Max. available length
60m (200ft) up to 8”
30m (100ft) up to 14”
