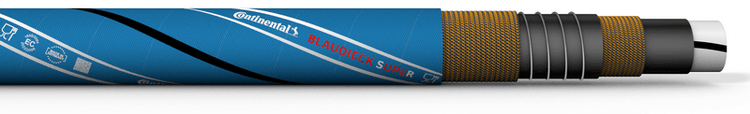

BLAUDIECK SUPER CONDUCTIVE

Hoses for Beverage / Food / Cosmetics / Pharmacy

The SUPERSTAR for the food & beverage industry

style
section-container,prose

APPLICATIONS

Beverage industry, Breweries, Convenience food industry, Dairies, Foodstuff industry, Industrial processing of flavorings, seasonings, gourmet food, fruit juices, lemonades & confectionery, Milk processing industry

FLOW MEDIUM

Media that fall under food simulants A, B, C, D1 and D2 according to EU 10/2011 (aqueous, greasy and oily foods, foods with a pH<4.5, alcoholic foods up to an ethanol content of 95%)

INNER LINING

non-porous, plasticizer-free, smooth, with black coiled OHM conductive strip

FURTHER PROPERTIES

Hose layers dissipative through the hose wall, R < 109 Ω, Hose suited to use in ex-zones, Lining and cover both resistant to oil and fats, Recommended fittings system PAGUFIX & PAGUCLAMP, Resistant to cleaning and disinfecting agents and chemicals according to the Continental resistance list

TEMPERATURE RANGE

from -30 °C / -22 °F up to +95 °C / +203 °F

up to +110 °C / +230 °F (max. 60 minutes)

style
section-container,prose,section-py
Nominal width (zoll/inch)
Inner Ø (mm)
Wall thickness (mm)
Length (m)
Helix
Working pressure (bar/psi)
Min. burst pressure (bar/psi)
Min. bending radius (mm)
Weight (g/m)
1
25
6
40
16/232
48/696
150
700
1 1/4
32
6
16/232
48/696
200
990
1 9/16
40
7
16/232
48/696
250
1400
2
50
8
16/232
48/696
350
2050
2 5/8
65
8
16/232
48/696
450
2500
3
75
8
16/232
48/696
500
2850
3 1/8
80
8
16/232
48/696
650
3050
4
100
9
16/232
48/696
750
4250
3/4
19
5
40
16/232
48/696
150
450
1 1/2
38
6.5
16/232
48/696
250
1200
2 1/2
63
8
16/232
48/696
450
2500
style
section-container,prose-py

Temperature resistance applies only to materials used / All technical data apply at room temperature / Steam information applies to saturated steam / Attention: Superheated steam will reduce the durability considerably / Other dimensions upon request
