AGRIDUR banded V-belts

AGRIDUR power transmission belts ensure extremely reliable power transmission for agricultural machines thanks to their smooth-running properties, even under harsh operating conditions, such as those resulting from dirt, dust and moisture. Furthermore, AGRIDUR power transmission belts deliver high efficiency, even under the most extreme of weather conditions, such as heat and cold, drought and rain, and direct sunlight. Another factor to bear in mind is that no lubrication is required – a real advantage when compared with chain drives. AGRIDUR power transmission belts therefore help to significantly reduce maintenance costs.

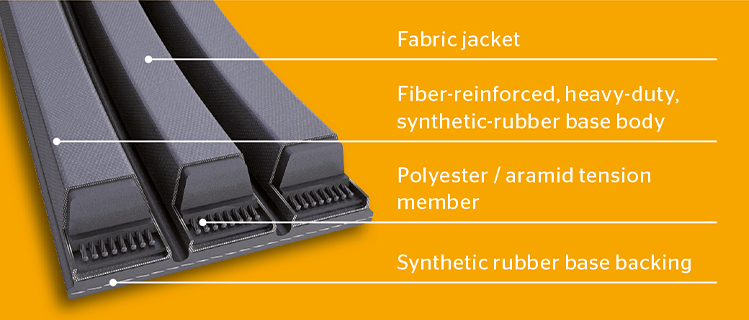

Structure AGRIDUR banded V-belts

Features

• Temperature range from -30°C to +80°C
• Enable especially smooth-running operation and prevent belt turn-over in the pulleys
• The version with aramid tension member is especially low-stretch

Profile

AGRIDUR banded V-belts
3V (9J)
5V (15J)
8V (25J)
HA
HB
HC
Length range up to 12,500 mm
