Label:

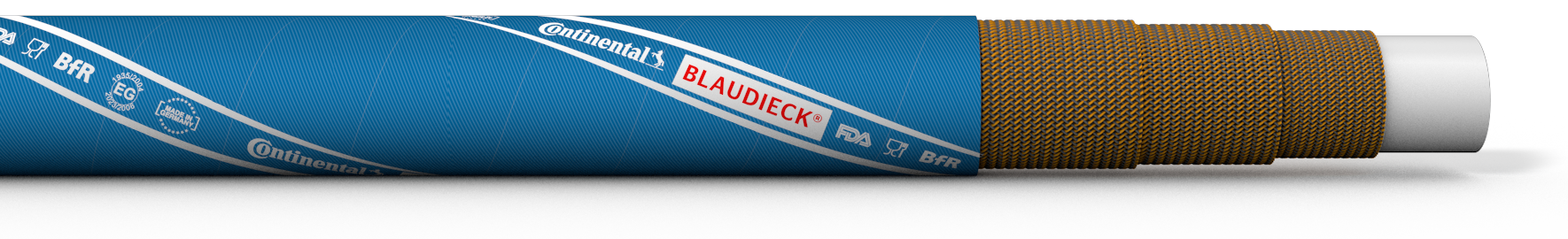

2 white stripes on a blue background, applied in a spiral "Continental BLAUDIECK® FDA Glas-/Gabel-Symbol BfR EG 1935/2004 2023/2006 Made in Germany"
STANDARD / APPROVAL
-
Regulation 177.2600
-
Recommendation XXI, Cat. 2
-
1935/2004
2023/2006
APPLICATIONS
Beverage industry, Convenience food industry, Foodstuff industry, Industrial processing of oil-, grease- and fruit-based substances, Milk processing industry
FLOW MEDIUM
Buttermilk, Cheese, Chocolate, Cottage cheese, Dairy ice cream, Egg yolk, Fats, Fatty foods, Fruit ice cream, Fruits, Gelatine, Ice, Milk, Oils, Rice pudding , Tallow
INNER LINING
NBR, white, homogenous, neutral to taste and odour, non-porous
REINFORCEMENTS
Synthetic fibres
COVER
NBR, blue, fabric patterned, abrasion resistant, resistant to ozone, weather and UV
FURTHER PROPERTIES
2 years warranty, Can be cleaned by CIP installations, Lining and cover both resistant to oil and fats, Recommended fittings system PAGUFIX®, Resistant to commonly used cleaning and disinfecting products
WORKING PRESSURE UP TO
16 bar / 232 psi
TEMPERATURE RANGE
from -30 °C / -22 °F up to +80 °C / +176 °F
up to +90 °C / +194 °F (max. 20 minutes
DAMPABLE UP TO
+110 °C / +230 °F
+130 °C / +266 °F (max. 20 minutes)
