Label:

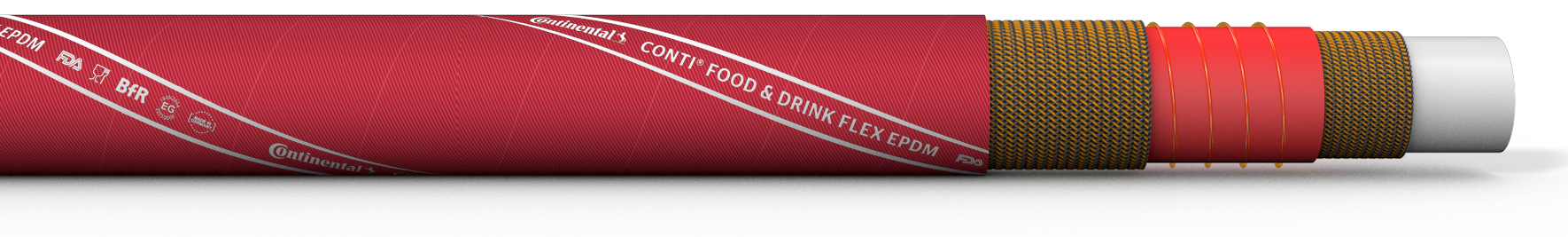

2 white stripes on red cover "Continental CONTI® FOOD & DRINK FLEX EPDM FDA Glas-/Gabel-Symbol BfR EG 1935/2004 2023/2006 Made in Germany"
STANDARD / APPROVAL
-
Regulation 177.2600
-
Recommendation XXI, Cat. 2
-
1935/2004
2023/2006
APPLICATIONS
Beverage industry, Breweries, Wine press houses
FLOW MEDIUM
Alcohol <20%, Beer, Citric acid , Fruit ice cream, Juice, Sugar syrup
INNER LINING
EPDM, white, neutral to taste and odour, non-porous, smooth
REINFORCEMENTS
Synthetic fibres, With integrated plastic helix
COVER
EPDM, red, fabric patterned, abrasion resistant, resistant to ozone, weather and UV
FURTHER PROPERTIES
2 years warranty, Highly flexible, Kink-resistant, Lightweight, Recommended fittings system PAGUFIX®, Resistant to commonly used cleaning and disinfecting products
WORKING PRESSURE UP TO
12 bar / 174 psi
TEMPERATURE RANGE
from -30 °C / -22 °F up to +90 °C / +194 °F
up to +100 °C / +212 °F (max. 20 minutes
DAMPABLE UP TO
+130 °C / +266 °F (max. 10 minutes)
|
nominal width |
inner-Ø |
wall thickness |
length |
helix |
working pressure |
min. burst pressure |
min. bending radius |
weight |
| zoll/inch |
mm |
mm |
m |
|
bar/psi |
bar/psi |
aprx.
mm |
aprx.
g/m |
|
1
|
25
|
6.0
|
40
|
•
|
12/174
|
36/522
|
125
|
680
|
|
1 1/4
|
32
|
6.0
|
40
|
•
|
12/174
|
36/522
|
190
|
851
|
|
1 1/2
|
38
|
6.5
|
40
|
•
|
12/174
|
36/522
|
190
|
1,150
|
|
2
|
50
|
8.0
|
40
|
•
|
12/174
|
36/522
|
250
|
1,660
|
|
2 1/2
|
63
|
7.5
|
40
|
•
|
12/174
|
36/522
|
315
|
1,970
|
|
2 5/8
|
65
|
8.0
|
40
|
•
|
12/174
|
36/522
|
325
|
2,170
|
|
3
|
75
|
8.0
|
40
|
•
|
12/174
|
36/522
|
375
|
2,470
|
|
3 1/8
|
80
|
8.0
|
40
|
•
|
12/174
|
36/522
|
400
|
2,620
|
|
4
|
100
|
9.0
|
40
|
•
|
12/174
|
36/522
|
500
|
3,700
|
Pressure and vacuum based on room temperature and adequate bending radius / High pressure and/or temperature lead to reduced component durability
