Label:

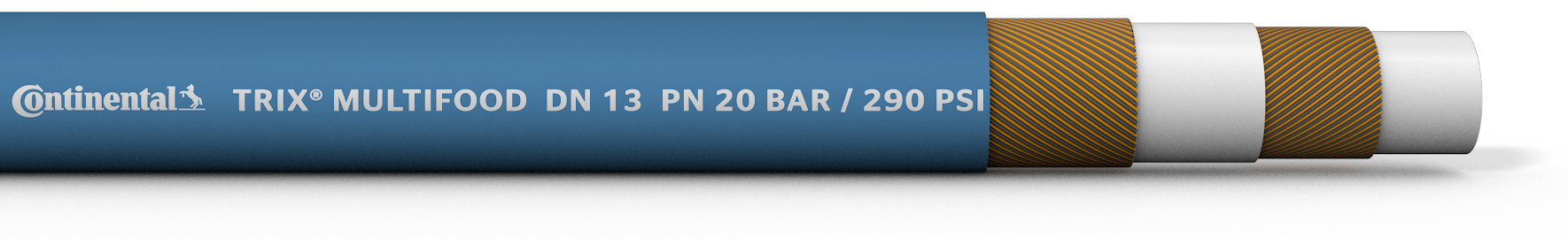

on blue cover "Continental TRIX® MULTIFOOD DN 13 PN 20 BAR / 290 PSI Glas-/Gabel-Symbol FDA Made in Germany"
STANDARD / APPROVAL
-
Regulation 177.2600
-
1935/2004
2023/2006
APPLICATIONS
Abattoirs, Bakeries, Cheese dairies, Commercial kitchens, Dairies, Fish processing, Jam factories, Large-scale butcheries, Margarine factories, Oil mills, Rendering plants
FLOW MEDIUM
Hot water, Liquid oily and fatty foods, Water
INNER LINING
NBR, white, homogenous, neutral to taste and odour, non-porous
REINFORCEMENTS
Synthetic fibres
COVER
NBR, blue, smooth, abrasion resistant, resistant to oil and fats, resistant to ozone, weather and UV
FURTHER PROPERTIES
Long-lasting, Recommended fittings system DINGA® water saving gun for hot water applications, Robust
WORKING PRESSURE UP TO
20 bar / 290 psi
TEMPERATURE RANGE
from -20 °C / -4 °F up to +90 °C / +194 °F
DAMPABLE UP TO
+164 °C / +327 °F (max. 10 minutes)
up to 6 bar / 87 psi - open system only
|
nominal width |
inner-Ø |
wall thickness |
length |
working pressure |
min. burst pressure |
min. bending radius |
weight |
| zoll/inch |
mm |
mm |
m |
bar/psi |
bar/psi |
aprx.
mm |
aprx.
g/m |
|
1/2
|
13
|
5.0
|
40
|
20/290
|
60/870
|
95
|
430
|
|
5/8
|
16
|
5.0
|
40
|
20/290
|
60/870
|
115
|
500
|
|
3/4
|
19
|
6.0
|
40
|
20/290
|
60/870
|
150
|
700
|
|
1
|
25
|
7.0
|
40
|
20/290
|
60/870
|
200
|
1,050
|
Pressure and vacuum data relate to room temperature / High pressures and/or temperatures reduce the service life
