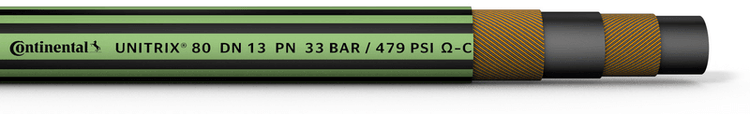

UNITRIX 80

Multi-Purpose Hoses

The Allrounder

style
section-container,prose

APPLICATIONS

Agricultural sector, Chemical and petrochemical industry, Construction industry, Forestry, Machinery and plant engineering, Mineral oil industry, Quarry, Railway industry, Shipping industry, Workshops

FLOW MEDIUM

Butane, Cold water, Fuel oil, Gasoil, Gasoline, Hot water, Kerosene, Lubricating oil, Mineral oil, Naphtha, Oily air, Propane, Salt solutions

INNER LINING

non-porous, smooth

FURTHER PROPERTIES

<= DN25: Ω-CL; > DN25: Ω-C (acc. EN ISO 8031)

TEMPERATURE RANGE

from -25 °C / -13 °F up to +85 °C / +185 °F

style
section-container,prose,section-py
Nominal width (zoll/inch)
Inner Ø (mm)
Wall thickness (mm)
Length (m)
Helix
Working pressure (bar/psi)
Min. burst pressure (bar/psi)
Min. bending radius (mm)
Weight (g/m)
1/4
6
4
33/479
80/1160
25
190
5/16
8
4
33/479
80/1160
35
230
3/8
10
4
33/479
80/1160
40
260
1/2
13
4.5
33/479
80/1160
55
370
5/8
16
5
33/479
80/1160
65
480
3/4
19
6
33/479
80/1160
85
680
1
25
6
33/479
80/1160
115
840
1 1/4
32
6
33/479
80/1160
190
935
1 1/2
38
6.5
33/479
80/1160
230
1150
2
50
7
33/479
80/1160
300
1610
2 3/8
60
8
40
33/479
80/1160
400
2260
3
75
9
120
33/479
80/1160
500
3050
style
section-container,prose-py

The media resistances refer to room temperature (72 h) / Testing of media resistance in accordance with DIN EN 1360 at room temperature / Temperature resistance applies only to materials used / All technical data apply at room temperature / Definition acc. EN ISO 8031: Ω-CL: R < 106 Ω per assembly (conductive cover & lining) / Ω-C: R < 106 Ω per assembly (conductive cover)
