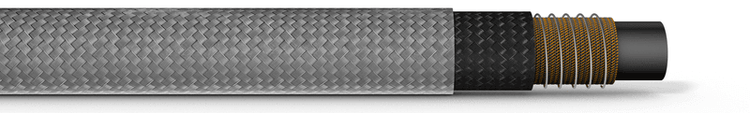

CONTI FUEL GCWA 2226
Fuel hose
FLOW MEDIUM
Biodiesel resistant, Diesel fuel
FURTHER PROPERTIES
Hose 22 25 with outside steel braiding with blue colored marking
TEMPERATURE RANGE
from -30 °C / -22 °F up to +70 °C / +158 °F
Nominal width (zoll/inch)
Inner Ø (mm)
Wall thickness (mm)
Length (m)
Helix
Working pressure (bar/psi)
Min. burst pressure (bar/psi)
Min. bending radius (mm)
Weight (g/m)
5/8
16
5
45/653
90/1305
90
520
7/8
20
5.5
38/551
75/1088
105
630
1
25
6
38/551
75/1088
120
730
1 1/4
32
6
35/508
70/1015
175
990
1 5/8
40
6.5
30/435
60/870
280
1125
2
50
6.5
30/435
60/870
335
1400
2 3/8
60
6.75
25/363
50/725
400
1730
3/8
13
5
55/798
-
70
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
