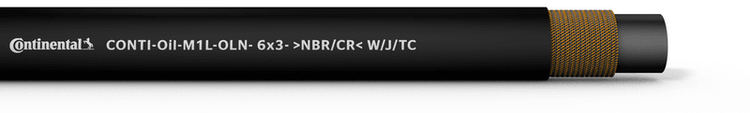

CONTI M1L-OLN

Oil Hoses

Oil hose for low pressure

style
section-container,prose

APPLICATIONS

Compressed air and compressor manufacturers, Construction industry, General industry, Low-pressure-applications

FLOW MEDIUM

Diesel fuel, Hydraulic fluids, Hydraulik oils, Lubricants, Oils, Oily air

INNER LINING

smooth

FURTHER PROPERTIES

Elastomer compounds do not contain aromatic plasticiser oils and are nitrosamine-free, Suitable for greases, engine oil, hydraulic fluids up to +100°C /+212°F, short term up to +120°C / +248°F, Suitable for heating oil type "EL" and "L", diesel fuels up to +40°C / +104°F, Suitable for oily air up to +100°C / +212°F, Unsuitable for biodiesel and methyl ester of rapeseed (RME)

TEMPERATURE RANGE

from -40 °C / -40 °F up to +100 °C / +212 °F

style
section-container,prose,section-py
Nominal width (zoll/inch)
Inner Ø (mm)
Wall thickness (mm)
Length (m)
Helix
Working pressure (bar/psi)
Min. burst pressure (bar/psi)
Min. bending radius (mm)
Weight (g/m)
1/6
4
3
500
40/580
160/2321
30
85
1/5
5
3
500
60/870
240/3481
35
90
1/4
6
3
400
60/870
240/3481
40
115
1/3
8
3
700
50/725
150/2176
50
140
3/8
9
3
600
40/580
120/1740
50
155
3/8
10
3
500
40/580
160/2321
60
170
3/8
10
3
500
20/290
100/1450
60
205
7/16
11
3.5
500
30/435
120/1740
65
220
1/2
12
3.5
500
40/580
160/2321
70
230
1/2
12
4
500
40/580
160/2321
70
280
1/2
13
4.5
500
30/435
120/1740
90
340
5/8
15
4.5
500
30/435
120/1740
110
380
5/8
16
4.5
450
20/290
100/1450
110
400
3/4
19
4
500
30/435
120/1740
130
380
3/4
20
5
200
30/435
120/1740
130
540
7/8
22
4
200
20/290
100/1450
140
430
7/8
22
5
200
20/290
80/1160
140
575
1
25
5.25
200
15/218
100/1450
150
670
1 1/8
28
5.25
200
12/174
80/1160
170
740
1 1/4
32
5.25
200
8/116
60/870
180
835
1 3/8
35
5.5
200
6/87
60/870
200
955
1 1/2
38
5.5
200
6/87
50/725
240
1025
5/8
16
4
500
20/290
100/1450
110
350
2 3/8
60
6
120
6/87
40/580
300
1670
1 9/16
40
5.75
200
6/87
40/580
240
1110
5/8
15
3.5
500
20/290
120/1740
110
350
1/6
4
3
50
40/580
160/2321
30
91
1/5
5
3
50
60/870
240/3481
35
107
1/4
6
3
50
60/870
240/3481
40
124
1/3
8
3
50
50/725
150/2176
50
152
3/8
9.5
3
500
45/653
180/2611
50
160
3/8
9.5
3
500
45/653
180/2611
50
160
2 3/8
60
6
120
6/87
40/580
300
1670
1 1/8
28
5.25
200
12/174
80/1160
170
740
1 1/4
32
5.25
30
8/116
60/870
180
856
1 3/8
35
5.5
200
6/87
60/870
200
955
1 1/2
38
5.5
200
6/87
50/725
240
1025
1 9/16
40
5.75
30
6/87
50/725
240
1065
3/8
9
3
50
40/580
120/1740
50
160
3/8
10
3
500
40/580
160/2321
60
170
3/8
10
3.5
500
20/290
100/1450
60
205
7/16
11
3.5
50
30/435
120/1740
65
227
1/2
12
3.5
500
40/580
160/2321
70
230
1/2
12
4
500
40/580
160/2321
70
280
1/2
13
4.5
50
30/435
120/1740
90
340
5/8
15
4
500
20/290
100/1450
110
330
5/8
15
4
500
20/290
100/1450
110
330
5/8
16
4.5
50
20/290
100/1450
110
424
5/8
15
4.5
500
30/435
120/1740
110
380
5/8
15
3.5
500
20/290
120/1740
110
350
3/4
19
4
500
30/435
120/1740
130
380
3/4
20
5
30
30/435
120/1740
130
530
5/8
16
4
500
20/290
100/1450
110
350
7/8
22
4
200
20/290
100/1450
140
430
1
25
5.25
200
15/218
100/1450
150
646
7/8
22
5
200
20/290
80/1160
140
575
style
section-container,prose-py

Temperature resistance applies only to materials used / All technical data apply at room temperature / Other dimensions upon request
