Air spring systems for Industrial Applications

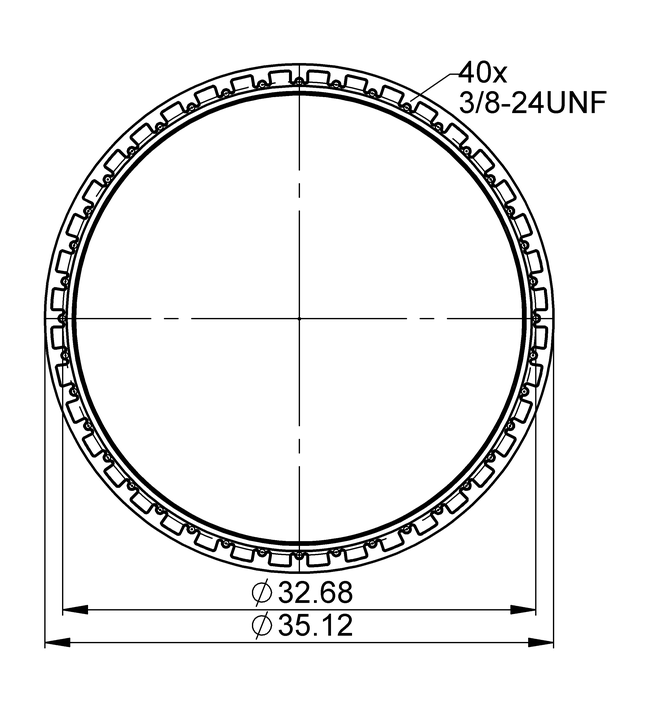

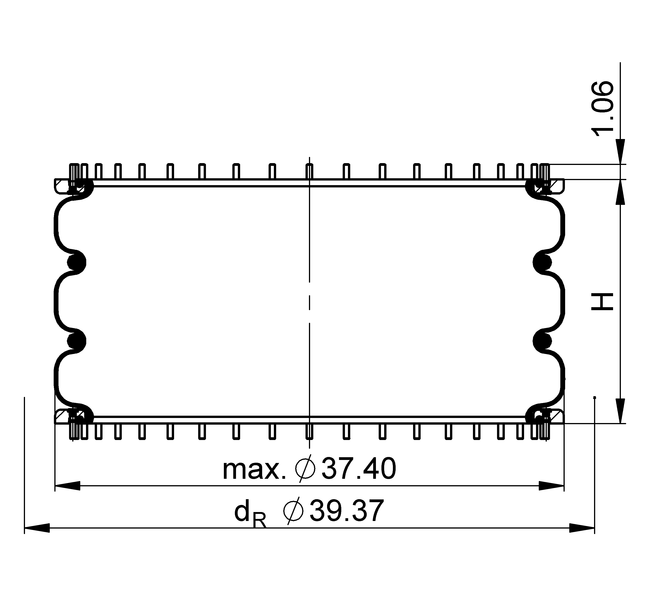

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >19.30 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 1686 lbf
    Overall weight 97.0 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 1686 lbf

      Overall weight 97.0 lb

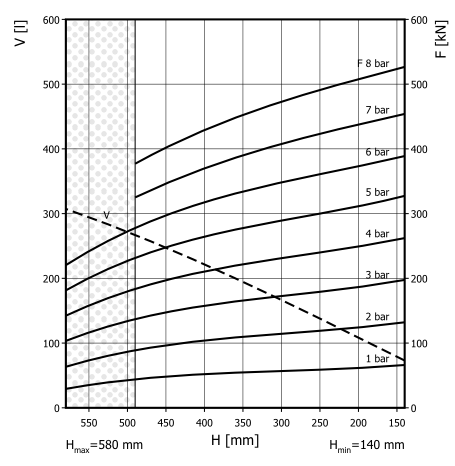

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 20.00 in. 27500 41500 55700 NaN NaN 17000
    H 17.50 in. 30300 45900 61600 77200 94400 15000
    H 15.00 in. 32800 49700 66700 83600 102000 13000
    H 12.50 in. 35200 52900 70800 88900 109000 11000
    H 10.00 in. 37100 55900 74400 93300 114000 8600
    H 7.50 in. 39000 58600 78000 97600 119000 6300

  • Purchase order data
    Type Air Inlet Order No.

    rubber bellows only

    		– 61787

    with bead rings, 1 7/8in bolts, nuts and washers

    		– 75399

    CAD Data

    • Type

      Air Inlet –

      Order No. 61787

    • Type

      Air Inlet –

      Order No. 75399

  • Service instructions
    Thread max. Torque
    3/8-24 UNF 30 lbf ft

    • 3/8-24 UNF 30 lbf ft
