Air spring systems for Industrial Applications

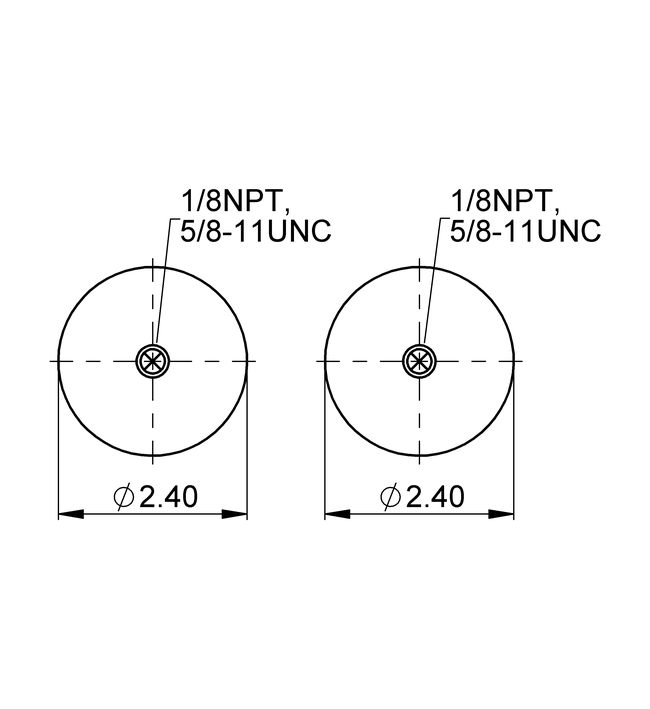

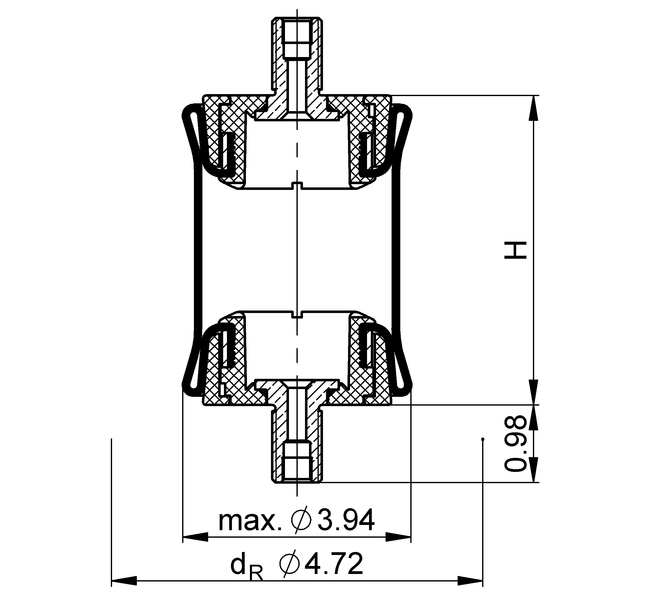

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >5.91 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 13.1 psi
    Return force to min. height ≤ 99 lbf
    Overall weight 0.8 lb

    • Min. pressure 13.1 psi

      Return force to min. height ≤ 99 lbf

      Overall weight 0.8 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 6.00 in. 179 257 338 423 505 45
    H 5.50 in. 207 312 416 520 628 41
    H 5.00 in. 217 336 455 577 697 38
    H 4.50 in. 221 345 471 600 731 35
    H 4.00 in. 223 351 479 609 740 31
    H 3.50 in. 228 355 485 618 751 28
    H 3.00 in. 244 371 501 629 763 24

  • Purchase order data
    Type Air Inlet Order No.

    with brass stud

    		1/8 NPT
    A = 0 in. excentrical     		76510

    CAD Data

    • Type

      Air Inlet 1/8 NPT_hand; 0in. excentrical

      Order No. 76510

  • Service instructions
    Thread max. Torque
    5/8-11 UNC 10 lbf ft
    1/8 NPT Handtight plus one turn

    • 5/8-11 UNC 10 lbf ft

    • 1/8 NPT Handtight plus one turn
