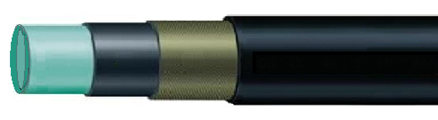

GALAXY® 4872 Veneer Hose

Application

GALAXY® 4872 Veneer HoseGALAXY® 4872 Veneer Hose
Tube- PA | Friction- CIIR | Reinforcement- PET | Cover- EPDM


  • Revised single braid veneer construction for improved flexibility.
  • Improved damping characteristics for NVH
  • Compatible with R134A and most refrigerant blends and compressor lubricants
  • Designed to operate in the temperature range of -40 °C to +135 °C (-40 °F to +275 °F)
  • Designed to meet DENSO and Toyota Specifications DDS 8031-089


Formed Hose specification 4878


Size Inside Diameter Outside Diameter Weight
Inch/mm Inch mm Inch mm
  min. max. min. max. min. max. min. max. lbs/ft kg/m
12mm 0.464 0.488 11.8 12.4 0.740 0.764 18.8 19.4 0.13 0.20
