GALAXY® FlexBarrier 4880 Suction Hose

Application

GALAXY® FlexBarrier 4880 Suction HoseGALAXY® FlexBarrier 4880 Suction Hose

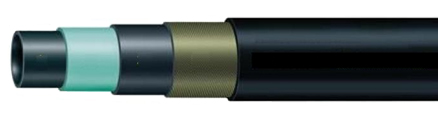

Tube- IIR | Barrier- PA | Friction-IIR | Reinforcement- PET | Cover- IIR


  • Improved Butyl and flexible nylon to optimize flexibility and NVH performance
  • Designed for suction hose applications
  • Dimensionally equivalent to 4890
  • Compatible with R134A and most refrigerant blends and compressor lubricants
  • Designed to operate in the temperature range of -40 °C to +135 °C (-40 °F to +275 °F)


Imperial

Nom SIZE Inside Diameter
(Inch)
Outside Diameter
(Inch)
Working Pressure Concentric Min Bend* Weight
Inch min. max. min. max. psi max. (Inch) rad (Inch) lbs / ft
5/8 0.615 0.655 0.910 0.950 350 0.03 2.5 0.19
3/4 0.745 0.785 1.060 1.100 350 0.03 3.5 0.23


Metric

Nom SIZE Inside Diameter
 (Inch)
Outside Diameter
(Inch)
Working Pressure Concentric Min Bend* Weight
mm min. max. min. max. MPa max. (Inch) rad (Inch) kg / m
16 15.6 16.6 23.1 24.1 2.4 0.76 64 0.28
19 18.9 19.9 26.9 27.9 2.4 0.76 89 0.33
