SAE J1402A 4-Spiral Construction

Application

SAE J1402A 4-Spiral Construction

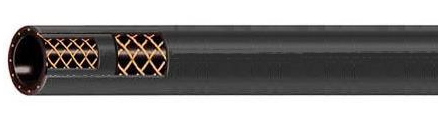

SAE J1402A 4-spiral construction
Tube: EPDM | REINFORCEMENT: PET | COVER: EPDM


  • Tube and Cover: Black EPDM compound
  • 4-Spiral Polyester Reinforcement
  • Meets DOT FMVSS-106 Requirements SAE J1402A dimensions
  • Temperature Range -40 °F to 200 °F (-40 °C to 93 °C)

Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
Inch min. max. min. max. min. max. min. max. lbs./ft. kg/m
1/4 0.227 0.273 5.8 6.9 0.594 0.656 15.1 16.7 0.15 0.23
3/8 0.352 0.398 8.9 10.1 0.719 0.781 18.3 19.8 0.20 0.30
7/16 0.407 0.469 10.3 11.9 0.781 0.843 19.8 21.4 0.22 0.32
1/2 0.469 0.531 11.9 13.5 0.844 0.906 21.4 23.0 0.24 0.35
5/8 0.594 0.656 15.1 16.7 1.031 1.094 26.2 27.8 0.34 0.51
