SAE 30R6

Application

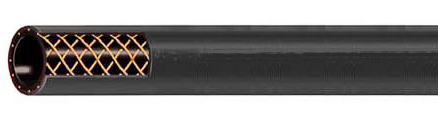

SAE 30R6Specially designed low-pressure hose for gas and gas/ethanol blends in carbureted vehicle applications. Resists gas, oil and diesel fuel. (Not recommended for use with biodiesel – see 30R9.) ​

  • Tube: Chemigum®
  • Cover: Chemivic™ for exceptional abrasion resistance
  • Reinforcement: Two-spiral polyester
  • Temperature range Up to 212 °F (100 °C)
  • Specially designed for gas, oil, diesel and other fuels
  • Minimum Burst 175 psi (1.2MPa)
  • Meets and exceeds SAE J30R6 specifications
  • Warning: Do not use for pressure line on fuel-injected engines.
  • Not compatible with biodiesel fuels – See 30R9 construction.

Size Inside Diameter Outside Diameter Weight Min. Burst
Inch mm Inch mm
Inch min. max. min. max. min. max. min. max. lbs./ft. kg/m psi bar
3/16 0.172 0.204 4.4 5.2 0.383 0.429 9.7 10.9 0.06 0.09 250 17.2
1/4 0.234 0.266 5.9 6.8 0.477 0.523 12.1 13.3 0.09 0.13 250 17.2
5/16 0.296 0.328 7.5 8.3 0.539 0.585 13.7 14.9 0.10 0.15 250 17.2
3/8 0.359 0.391 9.1 9.9 0.602 0.648 15.3 16.5 0.11 0.16 250 17.2
1/2 0.477 0.523 12.1 13.3 0.750 0.812 19.1 20.6 0.16 0.24 175 12.1
5/8 0.594 0.656 15.1 16.7 0.907 0.969 23.0 24.6 0.22 0.33 175 12.1

Mt Pleasant 580-006
