1010 150 °C TOC Hose

Application

1010 150 °C TOC Hose
1010 150 °C TOC Hose

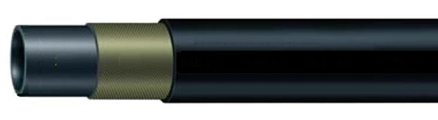

TUBE: CPE | Reinforcement: PET | Cover: CPE


  • CPE construction with a single polyester braided reinforcement
  • Qualified to SAE J1532, GM6260M, MS-EA234 as a straight hose
  • Qualified to SAE J1532 , MS-EA234 as a formed hose
  • Designed to operate in the temperature range of -40 °C to +150 °C (-40 °F to +300 °F)

Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
Inch mm min. max. min. max. min. max. min. max. lbs/ft kg/m
1/2 12.7 0.477 0.523 12.12 13.28 0.750 0.812 19.05 20.63 0.16 0.24
