1016 150 °C TOC Hose

Application

1016 150 °C TOC Hose
1016 150 °C TOC Hose

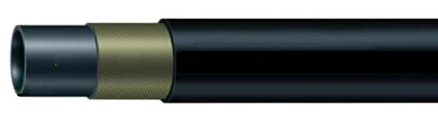

TUBE: CPE | Reinforcement: PET | Cover: CPE


  • CPE construction with a single polyester braided reinforcement, smooth cover
  • Qualified to SAE J1532 Type A, Class II, SAE 1016, Designed to operate in the temperature range of -400 °F to +300 °F (-40 °C +149 °C)
  • Handles power steering fluid and oil cooler applications. Engine oils: SAEW30 & 40 plus synthetics

Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
Inch mm min. max. min. max. min. max. min. max. lbs/ft kg/m
3/8 9.53 0.359 0.391 9.13 9.93 0.602 0.650 15.30 16.50 0.12 0.18
