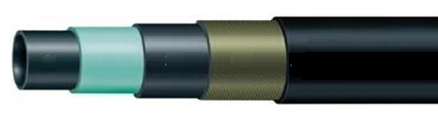

GALAXY SLE® Barrier 4890

Application

Our market-leading low-permeation construction. This hose is used by more OEMs around the globe than any other refrigerant hose construction. Galaxy 4890SLE derives its performance from a proprietary polyamide barrier and exceptional compounding. Compatible with new R1234yf refrigerant.

GALAXY SLE® Barrier 4890 GALAXY SLE® Barrier 4890

  • Four times the reduction in R134A permeation vs. current Galaxy 4860
  • Dimensionally equivalent to Goodyear 4860 hose
  • Improved Butyl cover provides significant reduction in moisture ingression
  • Incorporates an improved Poly-amide barrier between two elastomeric layers
  • Compatible with R134A and most refrigerant blends and compressor lubricants
  • Compatible with R1234yf new refrigerant
  • Designed to operate in the temperature range of -40 °C to +135 °C (-40 °F to +275 °F)

Dash Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
  Inch mm min. max. min. max. min. max. min. max. lbs./ft. kg/m
-6 5/16 8 0.309 0.339 7.9 8.6 0.560 0.600 14.2 15.2 0.09 0.13
-8 13/32 10 0.410 0.440 10.2 11.2 0.660 0.700 16.8 17.8 0.12 0.18
-10 1/2 12 0.490 0.530 12.5 13.5 0.745 0.785 18.9 19.9 0.13 0.19
-12 5/8 16 0.615 0.655 15.6 16.6 0.910 0.950 23.1 24.1 0.20 0.30
-14 3/4 19 0.745 0.785 18.9 19.9 1.060 1.100 26.9 27.9 0.23 0.34
