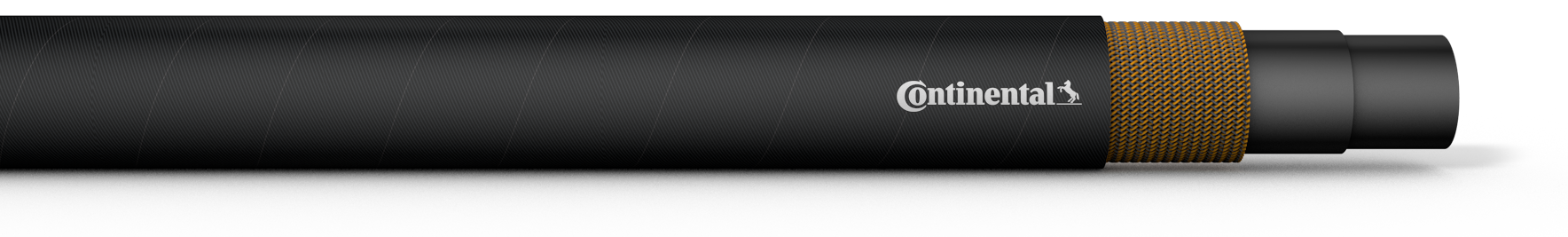

CONTI® FUEL CKR 2161

Fuel hose conductive

CONTI® FUEL CKR 2161
Label: Dimension>FPM/HNBR/CSM< W/J/TC

APPLICATIONS

Diesel fuel pipes

FLOW MEDIUM

Biodiesel resistant, Diesel fuel

INNER LINING

FPM/HNBR, black

REINFORCEMENTS

Aramid

COVER

CSM, black, grooved

FURTHER PROPERTIES

Available also with outside steel braiding, Electrically conductive, R < 106 Ω/m, Flexible, low permeability

WORKING PRESSURE UP TO

35 bar / 508 psi

TEMPERATURE RANGE

from --40 °C / 104 °F up to +125 °C / +257 °F
up to +150 °C / +302 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
5/16 8 3.5 20 25/363 125/1,813 80 175
3/8 10 3.5 20 25/363 125/1,813 80 210
1/2 12 3.5 20 25/363 175/2,538 100 230
5/8 15 4.0 20 35/508 175/2,538 110 330
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
