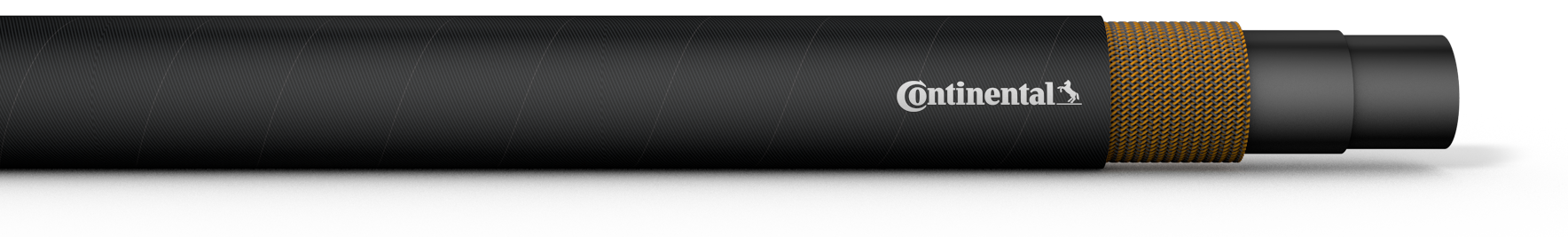

CONTI^® FUEL CKR 2180

Fuel hose bending stiff

APPLICATIONS

Diesel fuel pipes

FLOW MEDIUM

Benzine, Biodiesel resistant, Diesel fuel

INNER LINING

FPM/AEM, black

REINFORCEMENTS

Aramid, With integrated plastic helix

COVER

AEM, black, smooth

FURTHER PROPERTIES

Highly flexible, low permeability, not resistant to patrol fuel, Suitable for small bending radii

WORKING PRESSURE UP TO

15 bar / 218 psi

TEMPERATURE RANGE

from -40 °C / -40 °F up to +160 °C / +320 °F
up to +180 °C / +356 °F

nominal width	inner-Ø	wall thickness	length	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m	bar/psi	bar/psi	aprx. mm	aprx. g/m
1/4	6	3.2		15/218	120/1,740	25	120
5/16	8	3.2		15/218	120/1,740	35	149
3/8	10	3.5		15/218	120/1,740	35	193
1/2	12	3.5		15/218	120/1,740	45	213
5/8	16	4.0		15/218	120/1,740	70	312

_{Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request}
