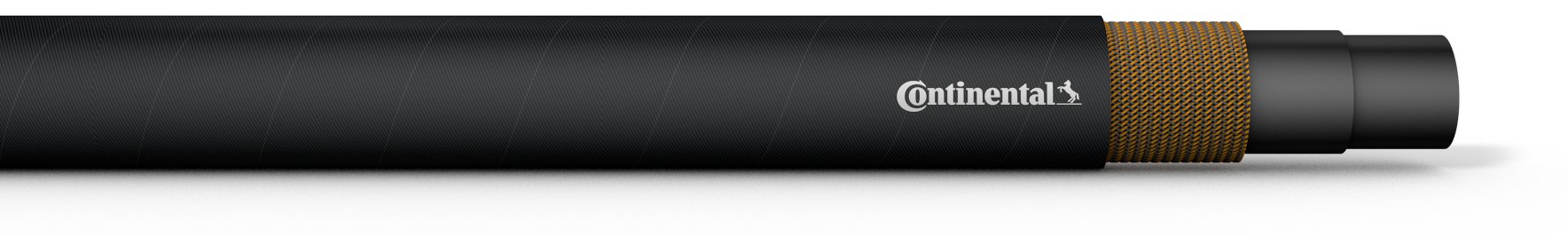

CONTI® FUEL CKR 2181

Fuel hose conductive

CONTI® FUEL CKR 2181
Label: Abmessung->FPM/ECO/AEM< W/J/TC

APPLICATIONS

Not suitable for gasoline fuels

FLOW MEDIUM

Biodiesel resistant

INNER LINING

FPM/ECO, black

REINFORCEMENTS

Aramid

COVER

AEM, black, smooth

FURTHER PROPERTIES

Electrically conductive, R < 106 Ω/m, Highly flexible, low permeability

WORKING PRESSURE UP TO

10 bar / 145 psi

TEMPERATURE RANGE

from -40 °C / -40 °F up to +160 °C / +320 °F
up to +180 °C / +356 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
5/16 8 3.0 10/145 70/1,015 70 128
3/8 10 3.0 10/145 70/1,015 80 210
5/8 16 4.0 10/145 70/1,015 80 339
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
