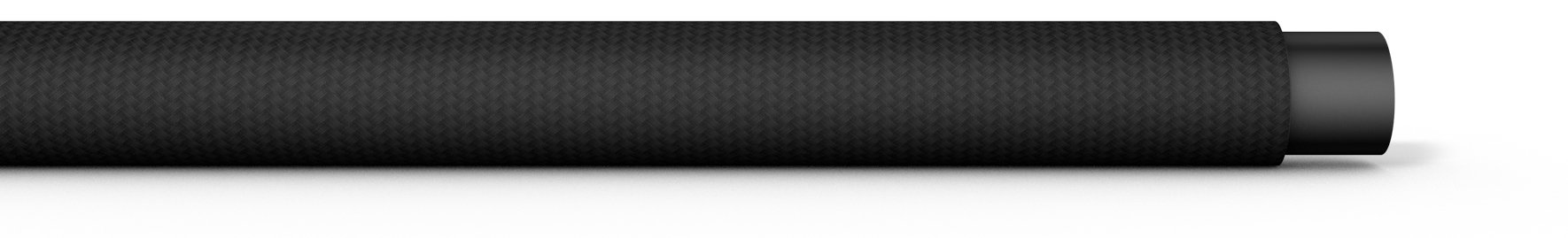

CONTI® FUEL CKR 2189

Fuel hose

CONTI® FUEL CKR 2189
Label: "Continental 9x3 >NBR/CMD< W/J/TC"

FLOW MEDIUM

Biodiesel resistant, Diesel fuel

INNER LINING

NBR, black

REINFORCEMENTS

CMD

FURTHER PROPERTIES

Suitable for biodiesel and methyl ester of rapeseed (RME) upto 70°C

WORKING PRESSURE UP TO

5 bar / 73 psi

TEMPERATURE RANGE

from -35 °C / -31 °F up to +90 °C / +194 °F
up to +110 °C / +230 °F short-time

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
1/8 3 1.9 5/73 15/218 26
3/16 4 2.5 5/73 15/218 34
1/4 6 2.5 5/73 15/218 42
5/16 8 2.5 5/73 15/218 58
3/8 9 3.0 5/73 15/218 72
7/16 11 3.0 5/73 15/218 88
5/8 15 4.0 5/73 / 104
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
