Pre-formed Production Jumpers

Standard API Spec. 17K

The Continental proprietary TauroTMFit pre-formed jumpers are an ideal solution for cramped topside well-bay areas, subsea jumpers, subsea pigging loops and mudline trees. TauroTMFit pre-formed jumpers typically reduce the minimum bend radius (MBR) by 50% and decrease forces on adjacent piping.

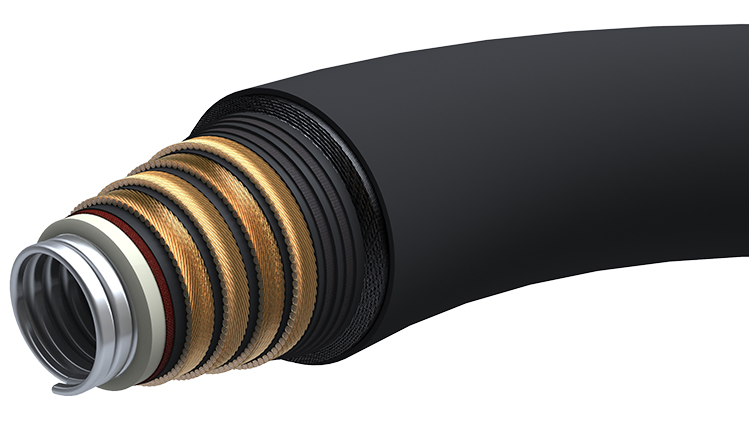

Tauro<sup>TM</sup>Fit pre-formed production jumper construction


Specifications

Internal diameter 4” to 6”
Bore type full flow, rough bore
Liner type H2S resistant HNBR
Shape preformed
Design pressure up to 2,000 psi
Operating temperature -30° C to +90° C (-22° F to 194° F)

For further technical details download the datasheet



Features & Benefits

  • Further sizes are available upon request
  • Easy installation in confined spaces
  • Extended service life as a result of reduced risk of over-bending and
    reduced stress on hose body and on coupling
  • Transfers less load to adjacent equipment or pipe work
  • Short coupling design increases flexible length with no reduction in
    bonding strength
  • Opens up new design opportunities to reduce the size and weight of oil
    field equipment
  • Coupling materials meet NACE MR 01-75/ISO 15156 latest edition
  • Material of the end fittings is either carbon steel or duplex
  • Material of the internal carcass is either 316L or 254 SMO
