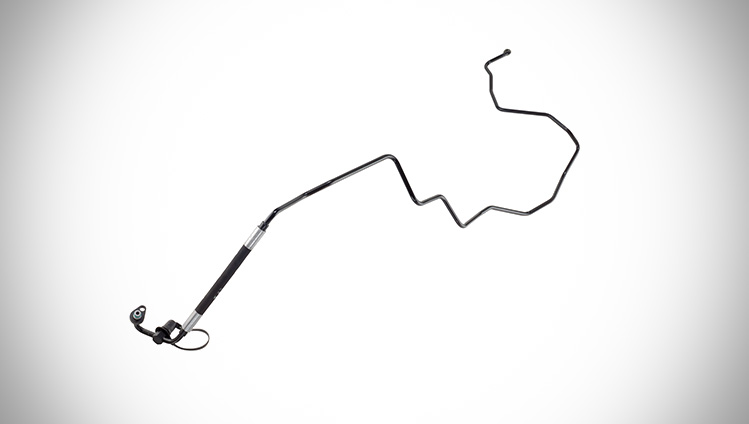

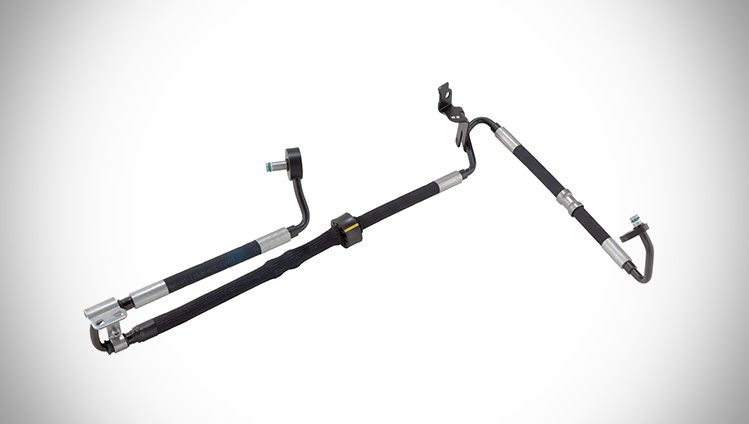

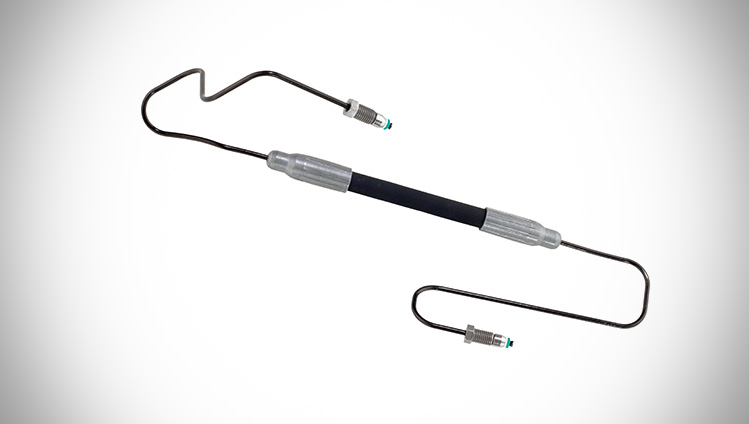

Hydraulic Lines for Active Chassis Stabilization

Hydraulic Lines for Active Chassis Systems

Active suspension systems actively control driving dynamics and driving comfort, which contributes to increased driving safety.

An intelligent combination of hydraulic lines and electronics is the basic prerequisite for optimal power transmission and control of the vehicle chassis.


• Pump pressure line
• Underbody line
• Actuator line
• Return line

Technical Specifications

• Operating pressures in excess of 200 bar
• Temperature range from -40°C to +125°C (short term up to +135°C)
• Solutions for the reduction of fluid-borne noise and structure-borne sound transmission
• Use of different hose constructions using textile and steel wire and with different diameters
• Pipelines and fittings manufactured from steel and aluminum

Benefits & Features

• Long-standing systems experience
• Narrow bending radii for complex installation spaces
• Material and geometry designed to customer specifications
• Elimination of fluid-borne noise and prevention of transmission of structure-borne noise
