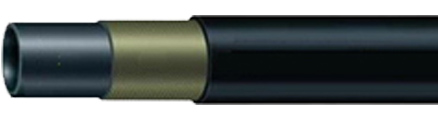

DB FLEX® 4842

Application

DB FLEX® 4842DB FLEX® 4842
Tube- CIIR | Reinforcement- PET | Cover- EPDM​

  • Single braid all- rubber hose
  • Temperature range -40 °F to +275 °F (-40 °C / +135 °C)
  • Reduces noise and vibration
  • Excellent moisture resistance
  • Meets GM 10013C and Delphi SD2-254 specifications (5/8 & 3/4)
  • Meets Renault 32-02-017G specifications (13/32 & 5/8) and Ford S95UW-19B591-AA (5/8)
  • Compatible with R134a Refrigerants & PAG oil

Dash Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
  Inch mm min. max. min. max. min. max. min. max. lbs./ft. kg/m
-10 13/32 10 0.398 0.429 10.1 10.9 0.846 0.906 21.5 23.0 0.24 0.36
-12 5/8 16 0.620 0.660 15.7 16.8 1.035 1.078 26.3 27.4 0.28 0.42
-14 3/4" 19 0.745 0.785 18.9 19.9 1.230 1.270 31.2 32.2 0.42 0.62
