GALAXY® Barrier 4861

Application

GALAXY® Barrier 4861GALAXY® Barrier 4861

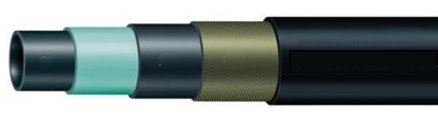

Tube- CR | Barrier- PA | Friction- NBR | Reinforcement- PET | Cover- CIIR


  • Single Braid Barrier Hose
  • Light Weight and Flexible
  • Temperature Range of -40 °F to +257 °F (-40 °C to +125 °C)
  • Meets Visteon S95 19B591 AA Specification
  • Compatible with R12 / R134a Refrigerants and Mineral oils / PAG’s

Dash Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
Inch mm min. max. min. max. min. max. min. max. lbs/ft kg/m
-14 3/4 19 0.745 0.785 18.9 19.9 1.060 1.100 26.9 27.9 0.21 0.32
