 Charge Air

Charge Air

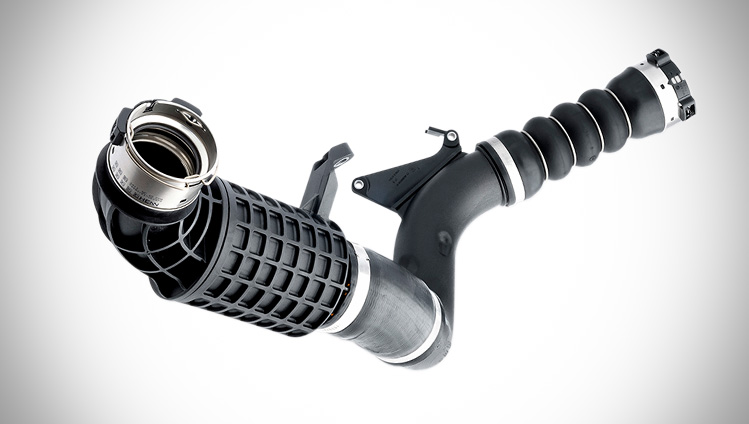

  • Charged air line system with blow molding pipe, resonator and Ultraflex

    Charged air line system with blow molding pipe, resonator and Ultraflex

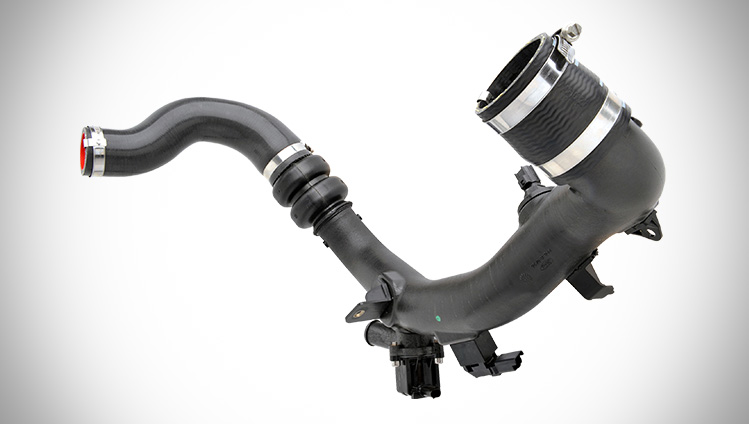

  • Charged air hose system hot side with resonator, 3D blow-molded plastic tube, sensor (temperature, pressure, flow rate valve), Elastomer hoses

    Charged air hose system hot side with resonator, 3D blow-molded plastic tube, sensor (temperature, pressure, flow rate valve), Elastomer hoses

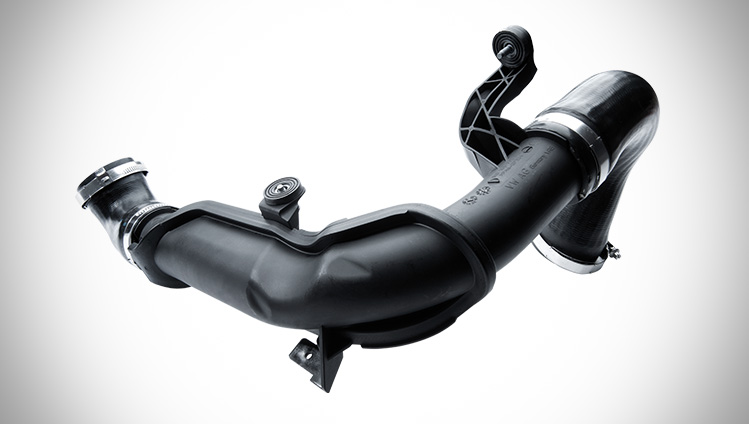

  • Charged air hose system with 2D injection-molded tubes

    Charged air hose system with 2D injection-molded tubes

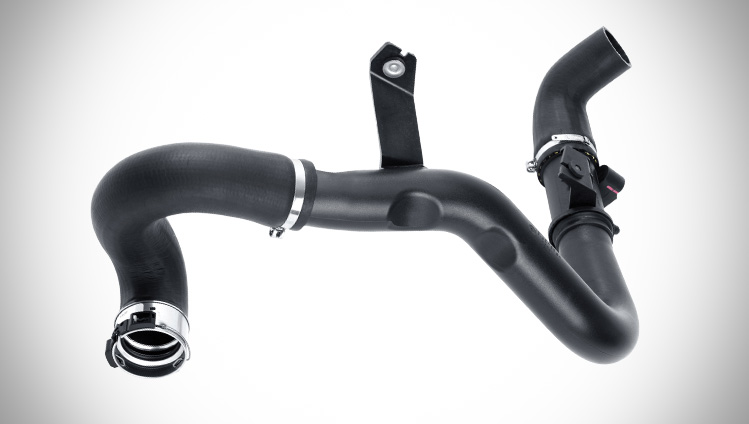

  • Charged air hose system with extrudes hose for greater motion compensation

    Charged air hose system with extrudes hose for greater motion compensation

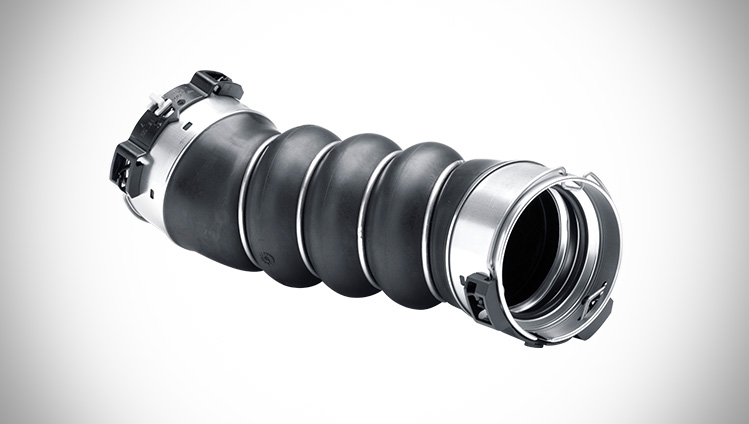

  • ULTRAFLEX:  Molded hose with fabric reinforcement

    ULTRAFLEX: Molded hose with fabric reinforcement

Intelligent material combinations for maximum efficiency

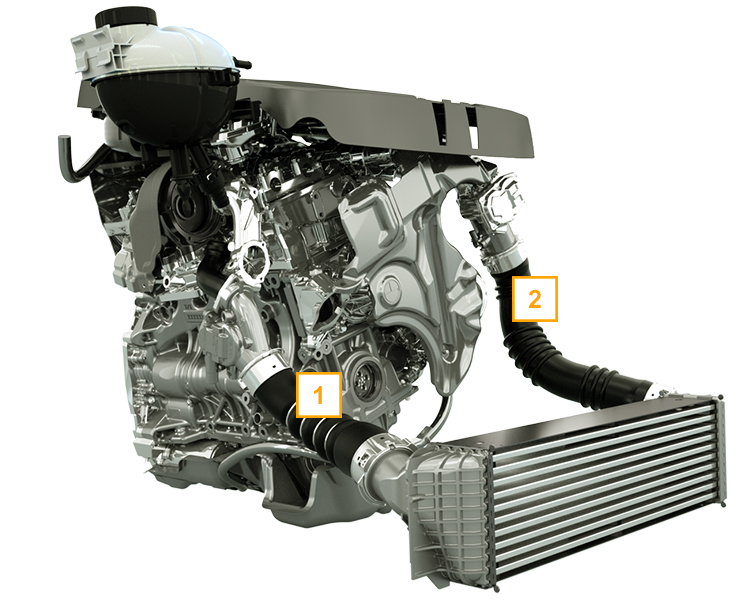

Charge Air

1 | Hot side

  • Temperature resistance
    • Elastomers up to 250°C
    • Plastics up to 225°C
  • Acid resistance (blow-by and EGR condensates)
  • Pressure resistance up to 3.5 bar > relative (passenger car)
  • Acoustic optimization (resonators)
  • Standard connections and quick couplings

2 | Cold side

  • Temperature resistance
    • Elastomers up to 150°C
    • Plastics up to 150°C
  • Acid resistance (blow by and EGR condensates)
  • Pressure resistance up to 3.5 bar > relative
  • Standard connections and quick couplings
  • Integration of pressure sensor, air mass sensor, bypass valve

    Product Range

    • Extruded Charge Air Hoses
      Extruded Charge Air Hoses


      For temperatures of up to 250°C with knit reinforcement.

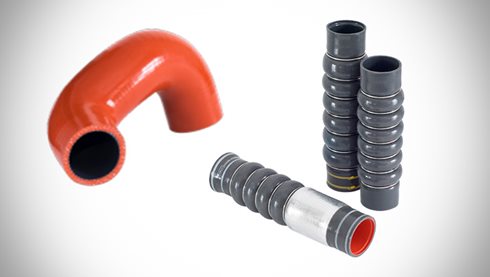

    • Wrapped Charge Air Hoses
      Wrapped Charge Air Hoses


      To compensate for the relative movements of the different units.

    • Molded Hoses (Ultraflex)
      Molded Hoses (Ultraflex)


      To compensate for small tolerances at the connection points.

    • Hybrid Hoses ("News Hose")
      Hybrid Hoses ("News Hose")


      With extruded inner layer and wrapped outer layer.

    • 3D Blow-Molded Tubes
      3D Blow-Molded Tubes


      Cost-efficient thanks to integrated clips and components.

    • 2D Injection-Molded Tubes
      2D Injection-Molded Tubes


      Precisely fitting, flexible design with integrated components.

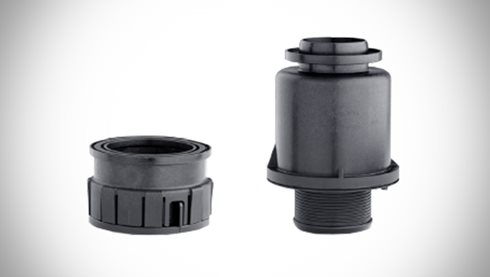

    • Plastic System Components
      Plastic System Components


      Sound Guard Resonator and Snap-In-Adapter.
