Conti® Synchrotwin Standard and Conti® Synchrotwin CXP/CXA
Reliable Power Transmission in Both Directions
Whether in printing machines, ride-on mowers, or other demanding applications – when high tensile forces and abrupt stops are required, conventional double-sided timing belts quickly reach their limits. The Conti Synchrotwin provides the ideal solution for counter-rotating drives with reverse rotation – powerful, durable, and low-maintenance.

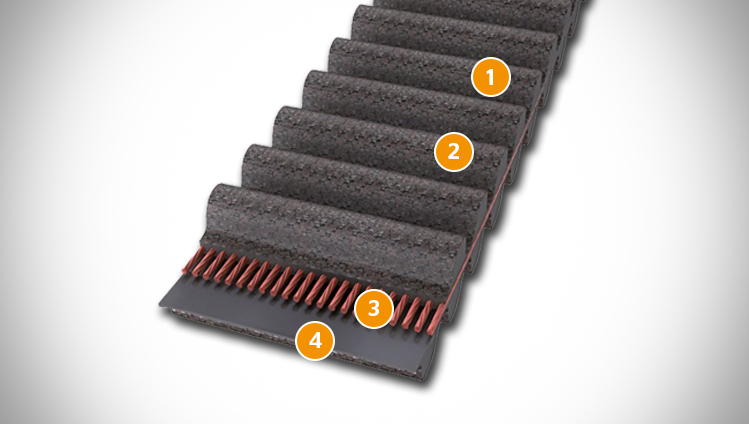

Even the standard version with a length-stable glass cord tension member ensures reliable performance in the lower and medium power range. For higher requirements, two additional variants are available:
- CXP: Featuring an extra-stiff high-performance synthetic rubber
- CXA: Featuring a high-strength aramid tension member for maximum length stability
Thanks to identical tooth profiles on both sides, no special pulley is required – saving time and costs.
- Available up to 6,000 mm in length
- Compact drive solutions that save space and weight
- Maintenance-free – no need for coolants or lubricants
- Temperature resistant from −20 °C to +100 °C
- Oil resistant according to ASTM test**
- Ozone resistant according to DIN 53509-T1, Category 0
**Oil resistance according to Continental test Swelling ASTM 1 = IRM Oil 901, Category A (Synchrotwin) and Category B (Synchrotwin CXP/CXA).
Wide Range of Applications
- Ride-on mowers
- Garden equipment
- Textile machines
- Packaging machines
- Machine tools
- Pumps
- Office machines
- Printing machines
- Assembly units
Dimensions
DHTD
Synchrotwin Standard, CXP, CXA*
*only available for 8M & 14M
DSTD
Synchrotwin Standard, CXP, CXA
DH
Synchrotwin Standard
