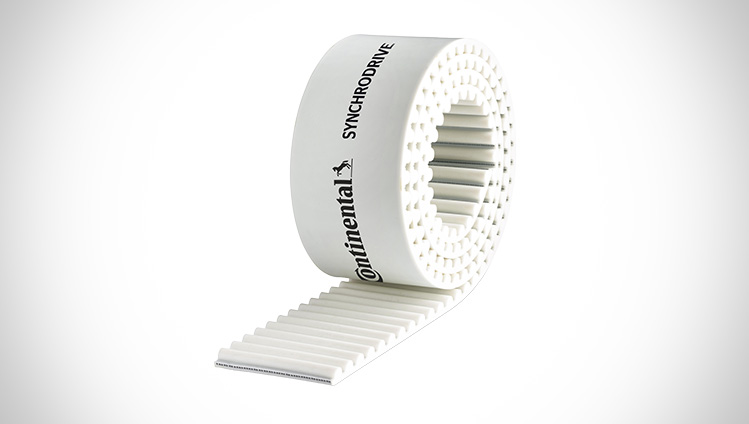

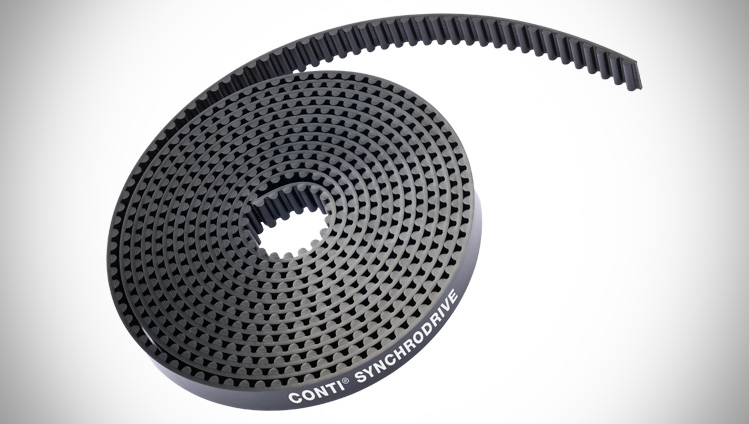

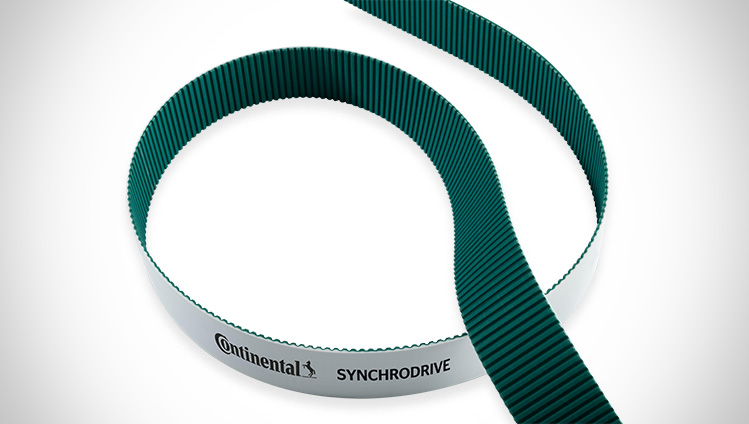

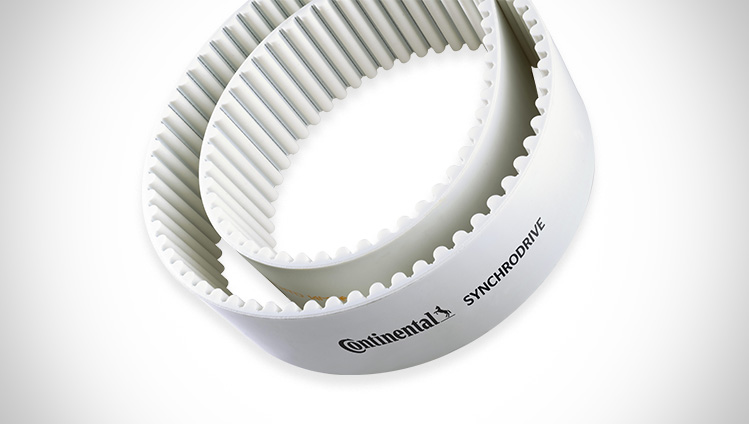

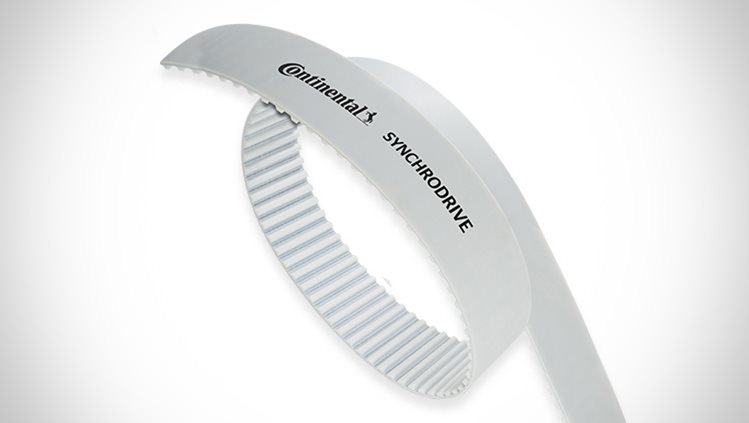

Conti® Synchrodrive

Open-ended polyurethane timing belts for linear and transport technology and door and gate entry systems.

New names for industrial drive belts

We are aligning and enhancing our industrial drive belt portfolio with a globally consistent naming structure. That is why you will see some changes on our product pages in the next months.

More

  • Temperature resistant between -30°C and +80°C (please seek technical advice for temperatures below -10°C and above +50°C)
  • Can be welded with thermoplastics
  • Wear resistant
  • Raw materials and production are silicone free
  • Resistant to fuel and benzene
  • Resistant to oil and grease
  • Resistant to UV and ozone
  • Suitable for use in tropical climates
  • Suitable for reverse flexing/reverse tensioning idlers
  • Maintenance-free
  • Resistant to hydrolysis



Technical specifications

Technical specifications
  • 1. Polyurethane teeth *
  • 2. Tension member/steel cord
  • 3. Polyurethane backing *

* Fabric cover on teeth and backing (PAZ/PAR) upon request


Dimensions

HTD

Profile Belt width (mm)
HTD 3M 5 - 50
HTD 5M 5 - 50
HTD 8M 10 - 100
HTD 14M 25 - 150


STD

Profile Belt width (mm)
STD S3M 5 - 50
STD S5M 5 - 50
STD S8M 10 - 100


XL - H

Profile Belt width (1/100 inch)
XL 25 - 200 (6,35 - 50,8 mm)
L 50 - 200 (12,7 - 50,8 mm)
H 50 - 400 (12,7 - 101,6 mm)


T

Profile Belt width (mm)
T5 5 - 100
T10 10 - 100


AT

Profile Belt width (mm)
AT3 5 - 50
AT5 5 - 50
AT10 10 - 100
AT20 25 - 120
