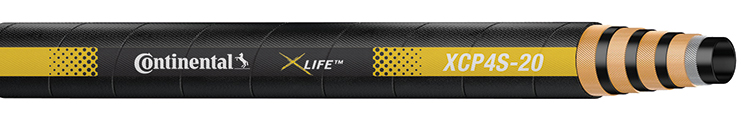

XCP4S

Marking: Continental X-Life™ XCP4S-08 SAE 100R12 / EN 856 1 1/4" (R12) 4100 PSI 21 MPa 213.73 BAR Flame Resistant MSHA 2G-1C-14C/45


Applications

XCP4S is for very high-pressure hydraulic applications requiring extra abrasion resistance. It has excellent impulse performance and flexibility.


Specifications

  • Max. working pressure: 4100 psi, 280 bar
  • Min. burst pressure: 16400 psi, 1130,7 bar
  • Meets or exceeds SAE 100R12, EN 856 4SH
  • Inner tube: Synthetic rubber
  • Black synthetic rubber cover with extra abrasion-, oil- and weather-resistance
  • Temperature range from -40°C to 120°C / -40°F to 250°F
  • Handles constant pressure
  • Extended Life™ Cover
  • 4:1 Safety Factor
  • 1/2 Bend


Technical Data

  Inside
Diameter
Outside
Diameter
Weight Minimum
Bend Radius
No. SAP inch mm inch mm lbs./ft. g/m inch mm

XCP4S-06

20854290

3/8 10,0 0.80 20,25 0.40 596 2.6 65

XCP4S-08

20854291

1/2 12,5 0.94 23,8 0.52 755 3.5 90

XCP4S-10

20854292

5/8 16,0 1.08 27,4 0.70 1043 3.9 100

XCP4S-12

20854293

3/4 19,0 1.21 30,7 0.09 1341 4.7 120

XCP4S-16

20864021

1 25,0 1.50 38,0 1.20 1788 5.9 150

XCP4S-20

20867345

1 1/4 31,5 1.79 45,5 1.71 2548 10.6 270

XCP4S-24

20867346

1 1/2 38,0 2.11 53,5 2.19 3263 13.0 330

XCP4S-32

20882961

2 51,0 2.59 65,9 3.23 4813 24.8 630
