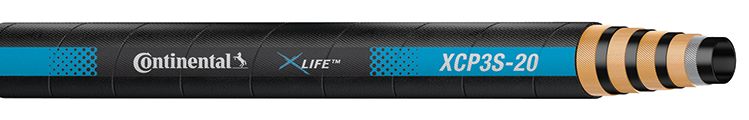

XCP3S

Marking: Continental X-Life™ XCP3S-20 SAE 100R12 1 1/4" (R12) 3100 PSI 21 MPa 213.73 BAR Flame Resistant MSHA 2G-1C-14C/45


Applications

XCP3S is made for high-pressure hydraulic applications requiring extra abrasion resistance. This hose has excellent impulse performance and flexibility.


Specifications

  • Max. working pressure: 3100 psi (210 bar)
  • Min. burst pressure: 12400 psi (855 bar)
  • Meets or exceeds SAE 100R12
  • Inner tube: Synthetic rubber
  • Black synthetic rubber cover with extra abrasion-, oil- and weather-resistance
  • Temperature range from -40°C to 120°C / -40°F to 250°F
  • Handles constant pressure
  • Extended Life™ Cover
  • 4:1 Safety Factor
  • 1/2 Bend


Technical Data

  Inside
Diameter
Outside
Diameter
Weight Minimum
Bend Radius
No. SAP inch mm inch mm lbs./ft. g/m inch mm

XCP3S-20

20901269

1 1/4 31,5 1.85 47,0 1.70 2533 16.5 420

XCP3S-24

20901671

1 1/2 38,0 2.11 53,5 2.05 3054 19.6 500

XCP3S-32

20901672

2 51,0 2.63 66,7 2.82 4202 24.8 630
