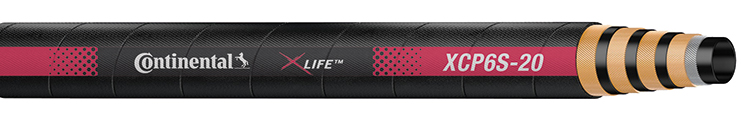

XCP6S


Marking:
Continental X-Life™ XCP6S-08 SAE 100R15 / EN 856 1/2" (R15) 6100 PSI 42 MPa 420 BAR Flame Resistant MSHA 2G-1C-14C/45


Applications

XCP6S is for very high-pressure hydraulic applications requiring extra abrasion resistance. It has excellent impulse performance and flexibility.


Specifications

  • Max. working pressure: 6100 psi, 420 bar
  • Min. burst pressure: 24400 psi, 1680 bar
  • Meets or exceeds SAE 100R15, EN 856 4SP
  • Inner tube: Synthetic rubber
  • Black synthetic rubber cover with extra abrasion-, oil- and weather-resistance
  • Temperature range from -40°C to 120°C / -40°F to 250°F
  • Handles constant pressure
  • Extended Life™ Cover
  • 4:1 Safety Factor
  • 1/2 Bend


Technical Data

  Inside
Diameter
Outside
Diameter
Weight Minimum
Bend Radius
No. SAP inch mm inch mm lbs./ft. g/m inch mm

XCP6S-06

20882967

3/8 10,0 0.84 21,4 0.48 715 3.5 90

XCP6S-08

20879438

1/2 12,5 0.97 24,6 0.58 864 3.5 90

XCP6S-10

20889839

5/8 16,0 1.11 28,2 0.73 1088 4.7 120

XCP6S-12

20864030

3/4 19,0 1.27 32,2 1.09 1624 4.7 120

XCP6S-16

20879440

1 25,0 1.52 38,7 1.46 2176 5.9 150

XCP6S-20

20882970

1 1/4 31,5 1.79 45,5 2.41 3591 17.5 445

XCP6S-24

20864033

1 1/2 38,0 2.28 57,8 3.02 4500 20.8 530

XCP6S-32

20880050

2 51,0 2.86 72,7 4.20 6259 24.8 630
