TWS Oil Hose


Applications

The high-temperature hose is ideally suited for the secure trans-port of liquid and gaseous media in the high temperature range up to 205°C. Resistant to ozone and UV radiation.


Specifications

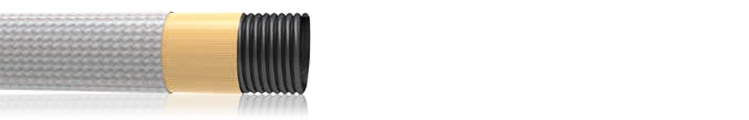

  • Black, corrugated PTFE inner lining
  • Reinforcement: textile braid
  • Outer lining with steel wire casing
  • Temperature resistance: -54°C to +180°C (up to +205°C for brief periods)
  • High chemical resistance

Technical Data

DN
[mm]
ID
[mm]
OD
[mm]
Operating Pressure
 [bar]
Bursting Pressure
[bar]
Bending Radius
[mm]
Weight
[g/m]
10 9,8 15,3 15 200 50 160
13 12,3 18,3 15 200 60 190
16 15,6 21,6 15 150 70 240
18 18,6 25 15 150 80 330
20 19,9 26,9 15 150 80 420
25 26,2 33,5 25 120 120 550

Pressure information in relation to room temperature. High pressure and/or temperature lead to a reduction in service life. Further dimensions available on request.
